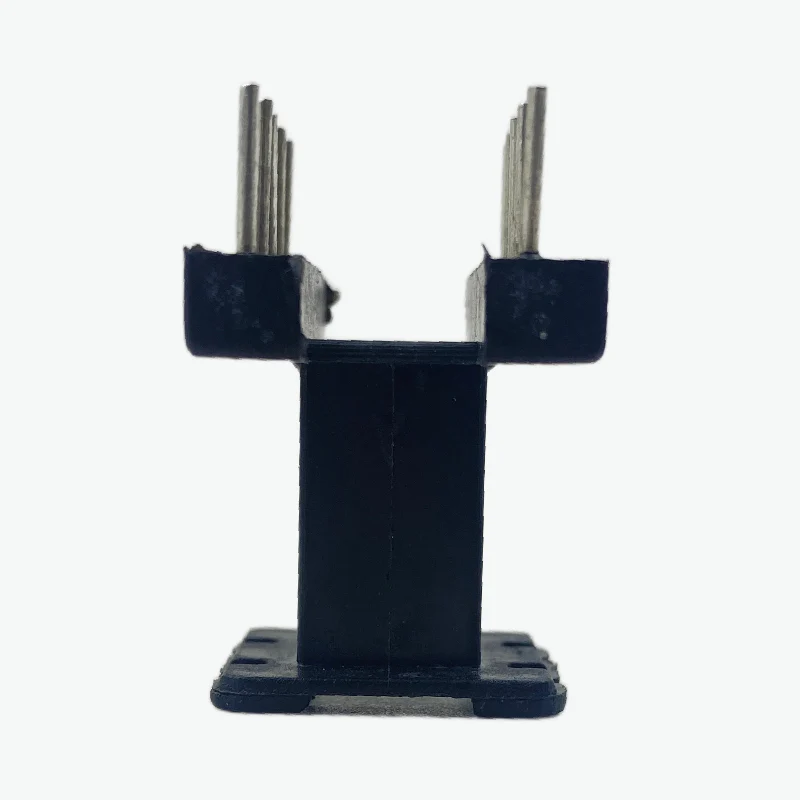

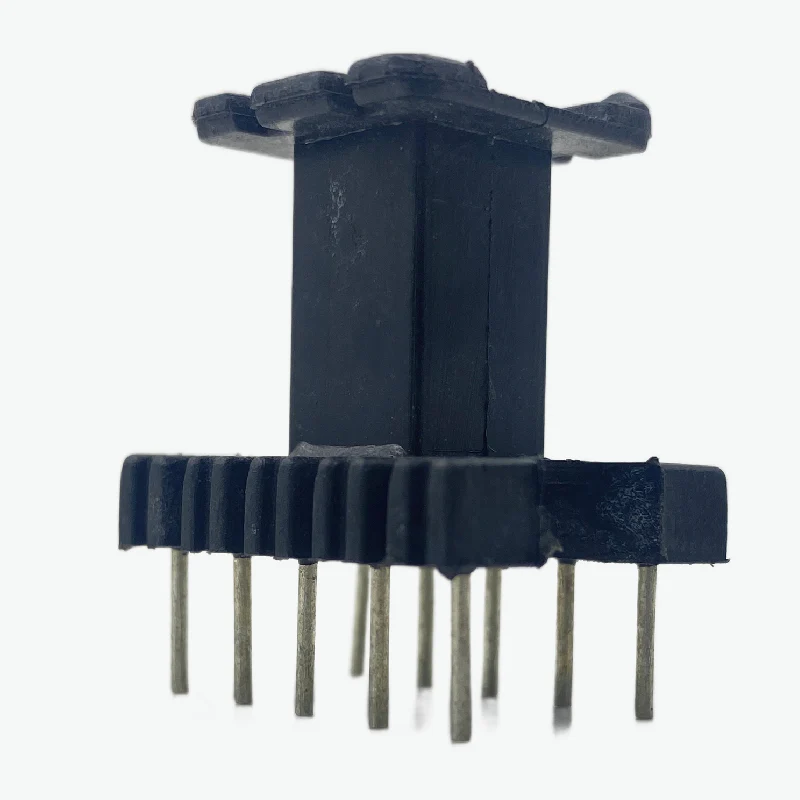

EE25 x 13 Phenolic Vertical Mount Transformer Bobbin - 10 Pins

EE25 x 13 Phenolic Vertical Mount Transformer Bobbin – 10 Pins is a durable phenolic bobbin designed for winding EE25 core transformers, featuring a vertical mount configuration with 10-pin terminals, strong insulation properties, and reliable mechanical stability, making it suitable for SMPS transformers, power supplies, and custom transformer winding applications.

Features:

1. Designed for EE25 × 13 transformer cores
2. Vertical mount configuration
3. 10-pin terminal layout
4. Durable phenolic insulating material
5. High mechanical strength and heat resistance
6. Suitable for custom transformer winding
7. Compatible with SMPS and power applications

Specifications:

• Product Type: Transformer Bobbin
• Core Type Compatibility: EE25 × 13
• Material: Phenolic
• Mounting Type: Vertical Through Hole
• Number of Pins: 10
• Package Dimensions: 12 × 10 × 5 cm
• Item Weight: 100 g
• Applications: SMPS transformers, power supply transformers, inverter transformers, custom transformer winding

Package Includes:

1 × EE25 x 13 Phenolic Vertical Mount Transformer Bobbin - 10 Pins
