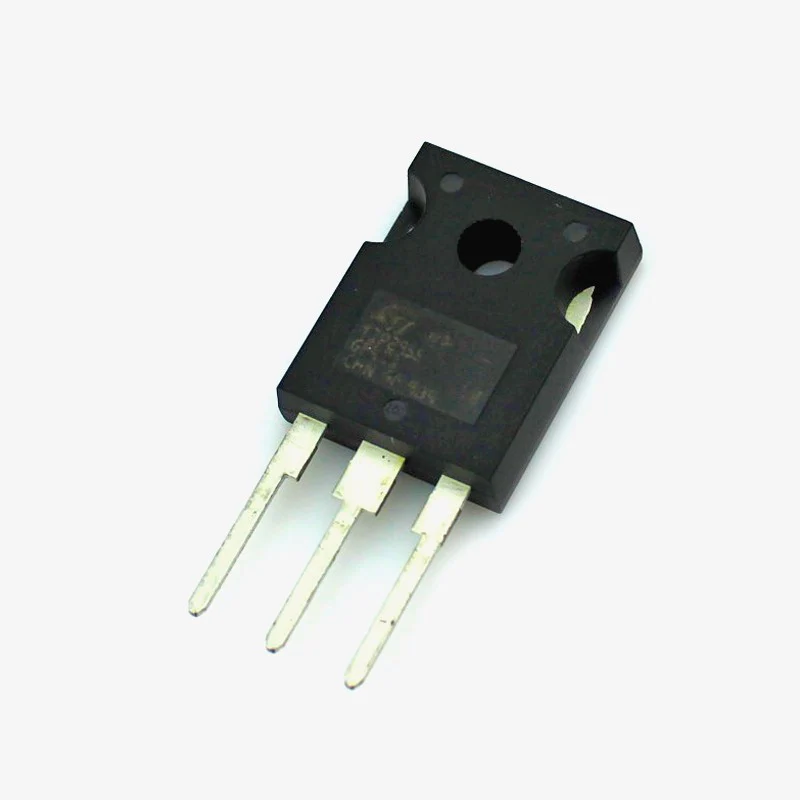

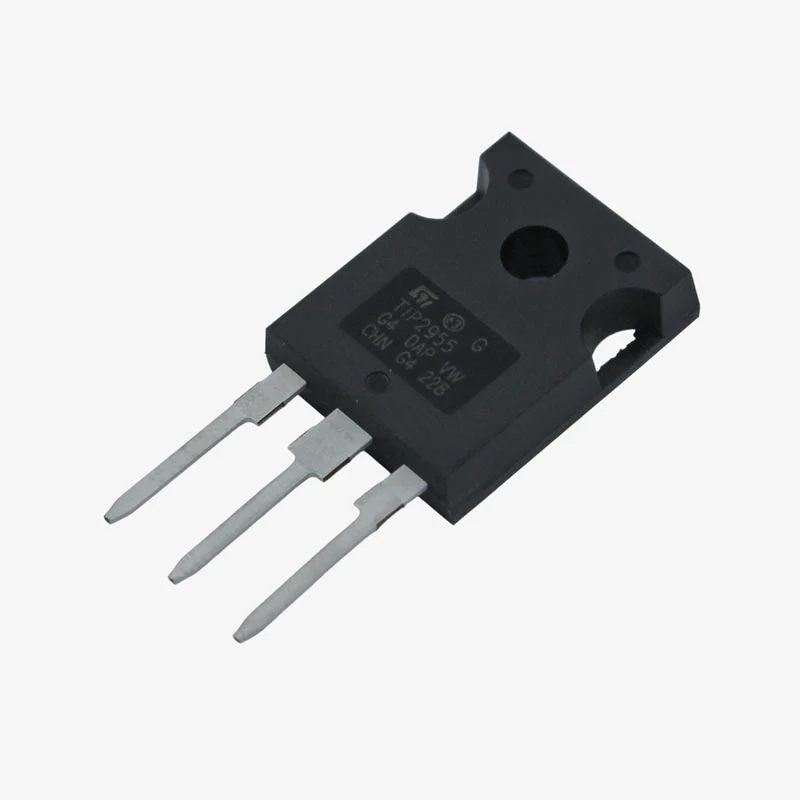

TIP2955 Power Transistor PNP 60V 15A TO247-3
The TIP2955 Power Transistor is a PNP transistor designed for general purpose switching and amplifier applications, mainly used in power switching circuits, hi-fi Audio amplifiers, shunt regulators, output stage, etc. The TIP2955 complimentary NPN transistor is TIP3055.
TIP2955 Transistor Features and Specifications:
- Collector-Emitter Voltage: -60 V
- Collector-Base Voltage: -70 V
- Emitter-Base Voltage: -7 V
- Collector Current: -15 A
- Collector Dissipation - 90 W
- DC Current Gain (hfe) - 20 to 70
- Transition Frequency - 3 MHz
- Operating and Storage Junction Temperature Range -55 to +150 °C
- Package - TO-247
