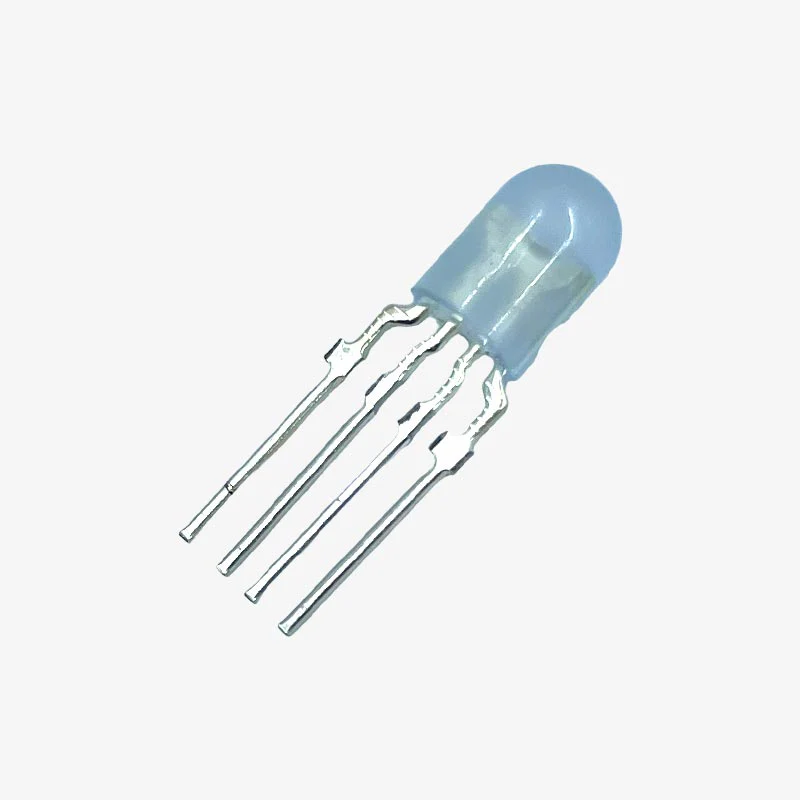

RGB LED - 5mm - Common Anode

This is a RGB LED with 4 pins of 5 mm package, Diffused type and oval shape.

Features:

• High Brightness
• Low Current Consumption
• Large Operating Voltage Range
• Wide Operating Conditions
• Color: Red, Green & Blue

Specifications of RGB LED:

• Ideal for Multicolor displays
• Low current consumption
• 5mm diameter
• LED Type : Water Clear/ Diffused
• View Angle: Water Clear 360 degrees; Diffused 250 degrees
• Luminous Flux :4-5LM
• Operating Temperature is -24 - 85 °C
• Wavelength :- RED : 625nm; Green: 520nm; Blue: 467nm
• Forward Current :-  Red: 20 mA; Green: 20 mA; Blue: 20 mA

• Forward Voltage :- Red: 1.8V – 2.2V;  Green: 3.0V – 3.4V;  Blue: 3.0 V – 3.4V

• Luminous intensity :- Red: 800 mcd;  Green: 4000 mcd;  Blue: 900 mcd

• To prolong the lifespan of the LED, the input current should be below 20mA.

Package Includes:

1pc of RGB LED - 5mm.
