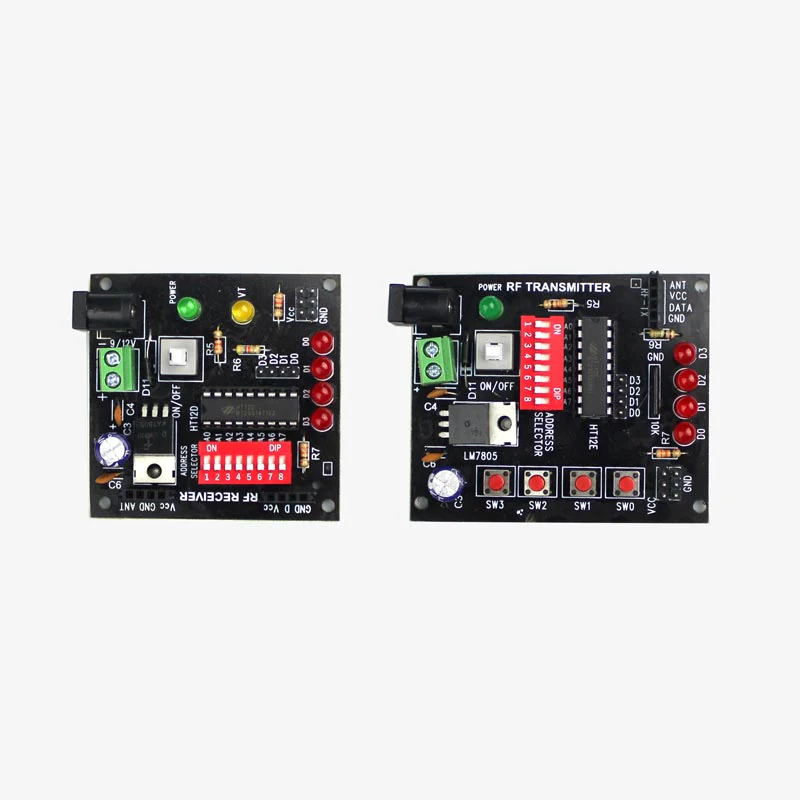

RF Transmitter and Receiver Module with Encoder and Decoder IC for 433Mhz Radio module

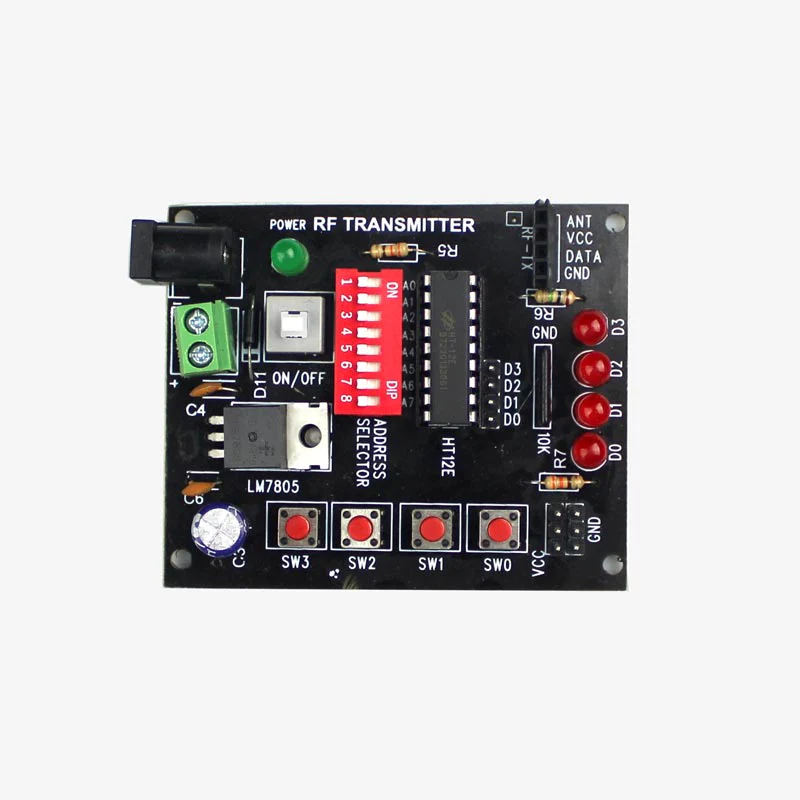

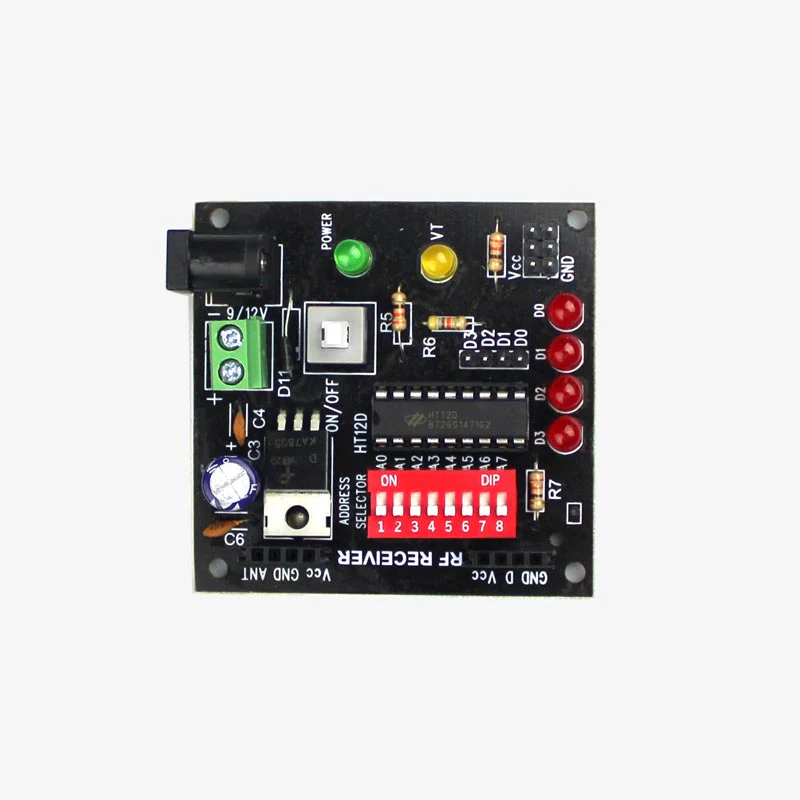

This RF Transmitter and Receiver module can be used with 433Mhz RF Radio modules for better communication and to avoid cross-connection with other transmitters and receiver modules working at the same radio frequency. This RF Transmitter Module uses the HT12E IC for encoding the message and the RF Receiver Module uses the HT12D IC for decoding.
Important:Â This modules does not include the Radio modules and it has to be purchased separatelyÂ
Specifications:
| Mode |
Wireless |
| Frequency Range | 433MHz |
| Range | 100 meters |
| Input Voltage | 9-12V |
| Operating Voltage | 5V DC |
| Using ICÂ | HT12E(Transmitter) & HT12D(Receiver) |
| Transmitter Module Dimension | 72mm*60mm*15mm |
| Receiver Module Dimension |
60mm*60mm*15mm |
Package Includes:
1 Set of RF Transmitter and Receiver Module 433MHz with Encoder and Decoder IC.
