Ai Thinker LoRa Ra-02 Series Spread Spectrum Wireless Transmission Module
ThisĀ is a wireless transmission module based on Semtech SX1278 wireless transceiver, designed toĀ be used for ultra-long distance spread spectrum communication. It can be used for a wide range of applications such asĀ automatic meter reading, home building automation, security systems, remote irrigation systems,Ā etc.
Features:
- LoRaĀ spread spectrum modulation technology
- Receive sensitivity as low as -141 dBm
- Excellent resistance to blocking
- Supports preamble detection
- Supports half-duplex SPI communication
- Programmable bit rate up to 300Kbps
- Supports FSK, GFSK, MSK, GMSK, LoRa ā¢ and OOK modulation modes
- Supports automatic RF signal detection, CAD mode and ultra high-speed AFC
- Packets with CRC, up to 256 bytes
- Small package with double volume stamps

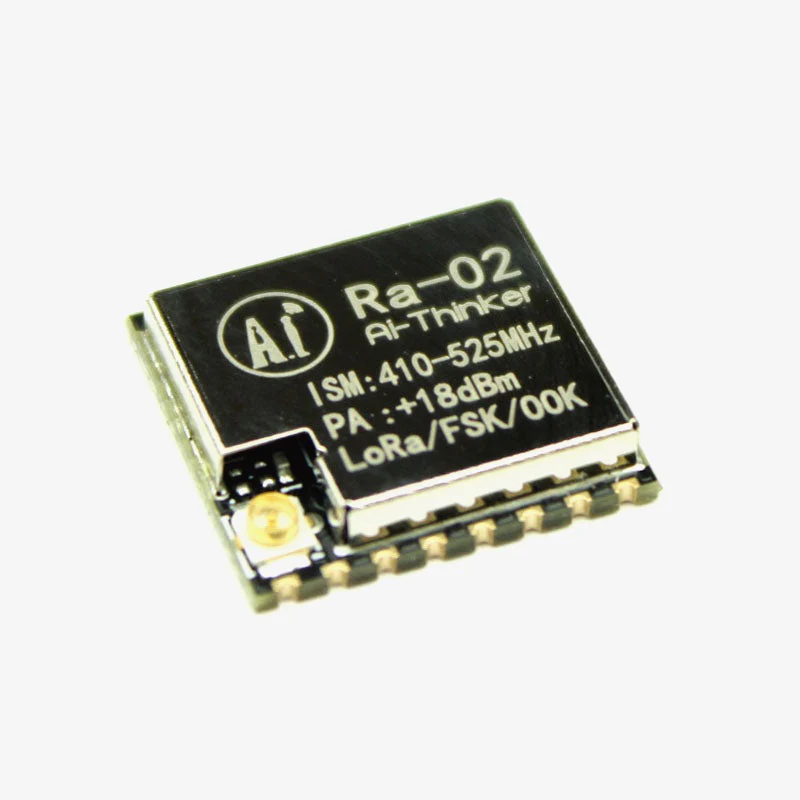

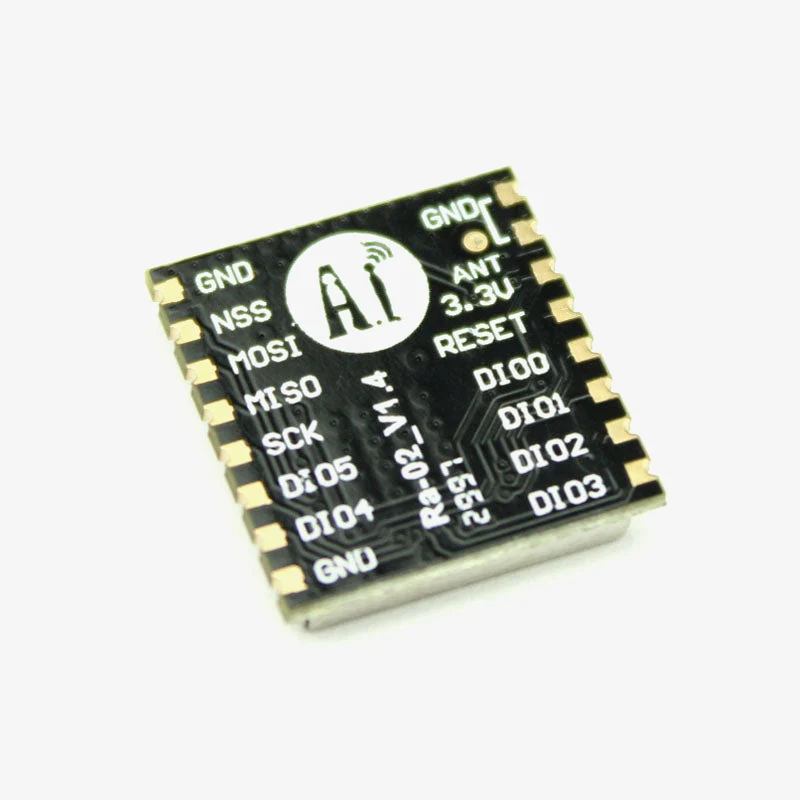

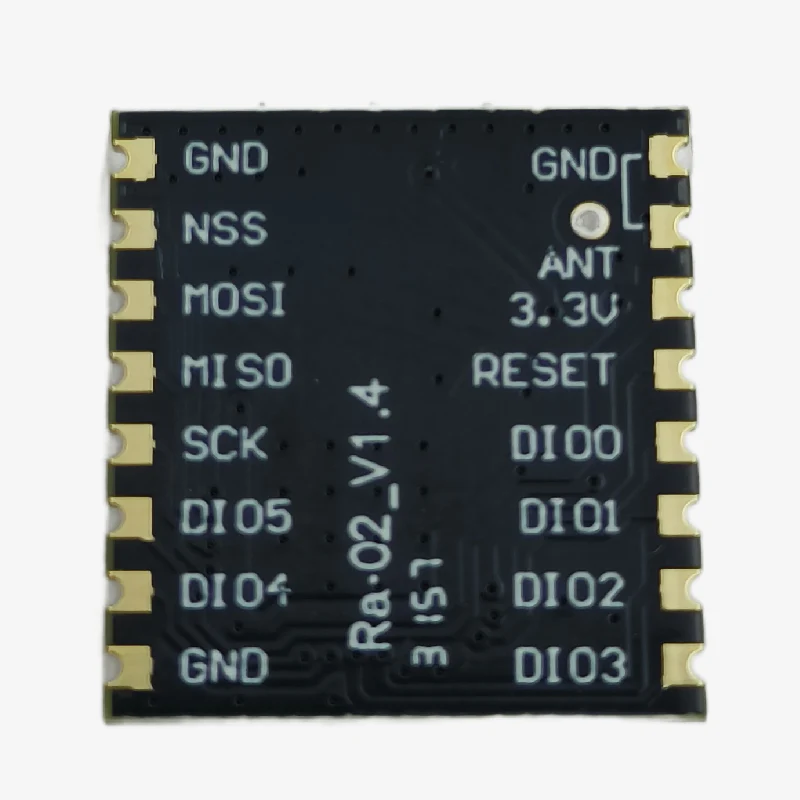

Product Image and 2D model:
Ā
Package Includes:
1 x Ai-Thinker LoRaĀ Ra-02 Series Module
