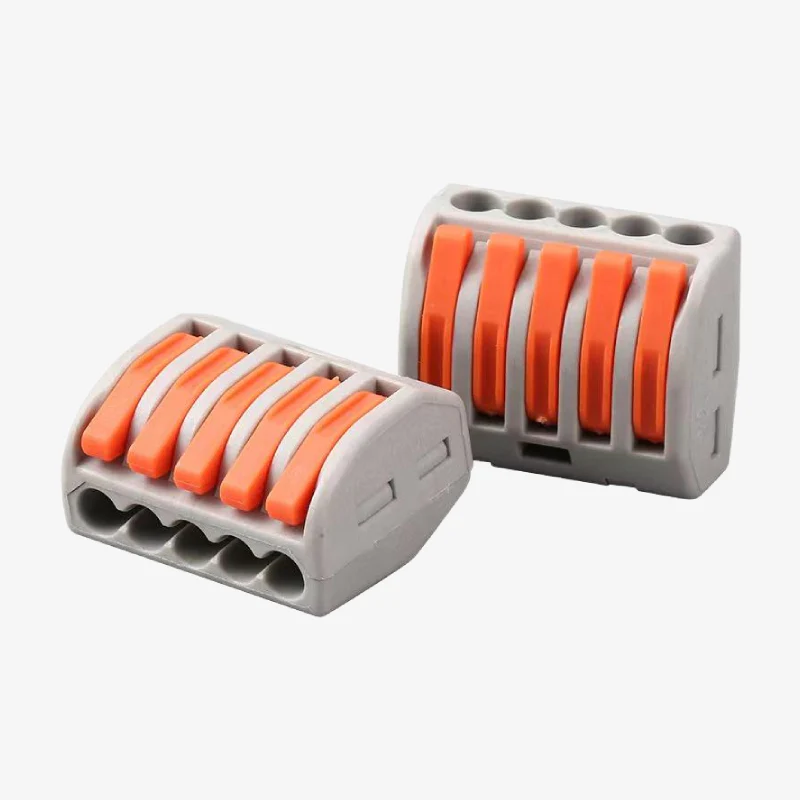

PCT-215 0.08-2.5mm 5 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

The PCT-215 is a 5-pole wire connector terminal block designed for secure, tool-free cable connections in electrical and DIY wiring applications. It features a spring lock lever mechanism that ensures a strong and reliable connection, allowing quick insertion and removal of wires ranging from 0.08mm² to 2.5mm². The compact and reusable design makes it ideal for use in junction boxes, control panels, and home electrical wiring tasks.

Features of PCT-215 5 Pole Wire Connector:

1. Accommodates wires from 0.08mm² to 2.5mm²
2. 5 pole design allows multiple wire connections in one unit
3. Tool-free spring lock lever for quick and secure installation
4. Flame-retardant and durable insulated housing
5. Reusable and compact for space-constrained environments
6. Ideal for residential, industrial, and DIY wiring tasks

Specifications of PCT-215 5 Pole Wire Connector:

• Model: PCT-215
• Wire Size Range: 0.08–2.5mm² (28–14 AWG)
• Number of Poles: 5
• Rated Voltage: 250V
• Rated Current: 32A
• Housing Material: Flame-retardant polycarbonate (PC)
• Contact Material: Copper alloy
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × PCT-215 0.08-2.5mm 5 Pole Wire Connector Terminal Block with Spring Lock Lever
