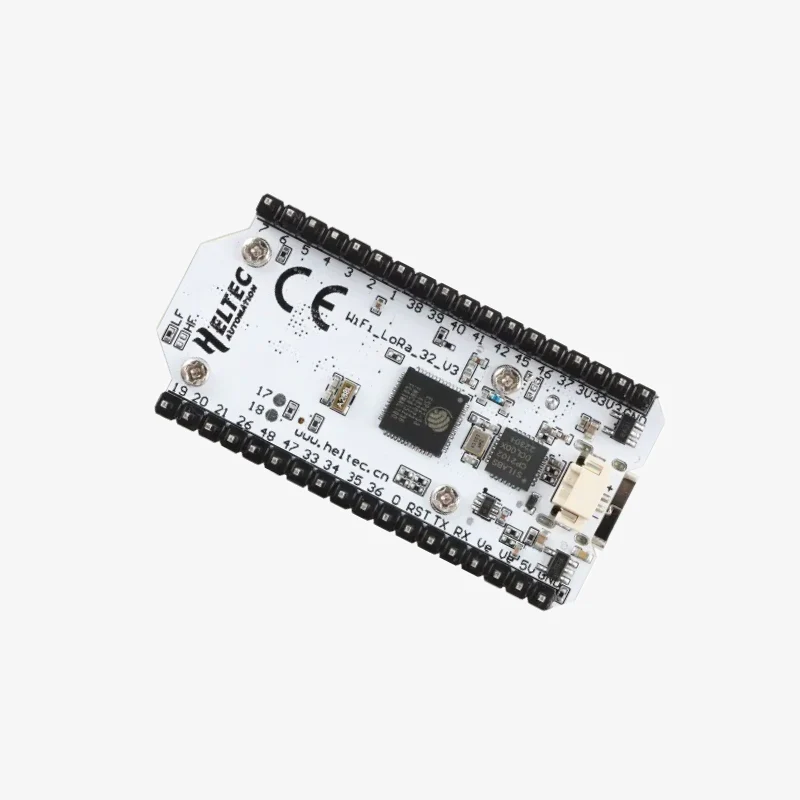

Heltec Automation LoRa ESP32 OLED Display Bluetooth WIFI IoT Development Board for Arduino

The WIFI Kit series from Heltec Automation is a cost-effective networking solution featuring the Lexin ESP32 chip. It comes equipped with a Tensilica LX6 dual-core processor clocked at 240MHz, delivering computing power up to 600DMIPS. The chip includes 520 KB SRAM, an 802.11 b/g/n HT40 Wi-Fi transceiver, baseband, protocol stack, and LWIP. Additionally, it supports dual-mode Bluetooth (classic and BLE). Enhanced with the SX1262 chip, this board supports LoRa communication at 868/915MHz frequency, offering high sensitivity (-139dBm) and a power output of +20 dBm, ensuring reliable long-distance transmission up to 2.8km in open areas.

The board integrates 32MByte Flash, a Wi-Fi antenna, a 0.96-inch blue OLED display, a lithium battery charging circuit and interface, and a CP2102 USB to serial chip. It is fully compatible with the Arduino development environment, allowing for easy and rapid program verification and product development.

Note: The appearance or design of the antenna may vary from the image shown here.

Specifications:

Item Type	Bluetooth Module, Dev. Board
Based On	ESP32
Chipset	SX1262 and ESP32
Display	0.96-inch Blue OLED
Operating Voltage (V)	3.3V to 7V
Operating Temperature (°C)	-40°C to +90°C
Connector Type	Ipex
Maximum Power (W)	10W
Receiver Sensitivity	up to –139 dBm
Data Rate	150 Mbps @ 11n HT40, 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
Transmit Power (dBm)	19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Frequency Range	868-915MHz
Gain	3dBi

Package Includes:

1 x ESP32 LoRa SX1262 0.96 Inch Blue OLED Display BT WiFi Module

1 x Antenna

2 x 1*18 Pins Burg connectors(Straight)
