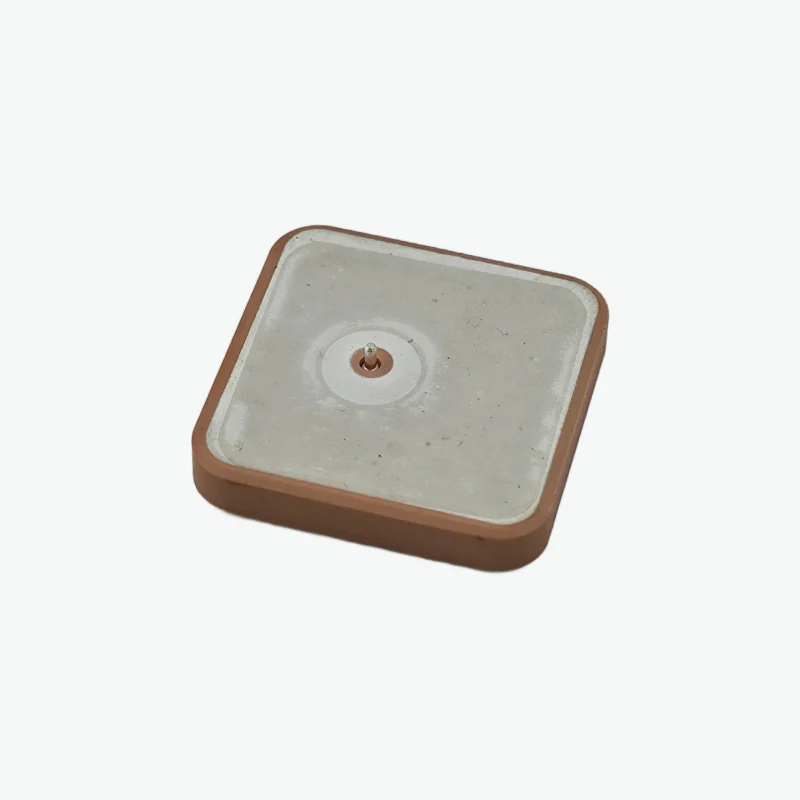

The GPS/BD 3-5dB 1575-1561MHz Ceramic DIP Chip Antenna - AHGG.241 is a compact and reliable onboard antenna designed for GPS and BeiDou GNSS positioning systems. Its ceramic construction ensures stable signal reception and high precision in satellite tracking, making it ideal for embedded navigation modules and compact IoT devices requiring accurate location data.
Features:
Supports GPS and BeiDou dual-frequency operation for enhanced positioning accuracy
Compact chip design suitable for internal and space-constrained applications
Ceramic material ensures excellent signal stability and durability
Easy DIP mounting for seamless PCB integration
Specifications:
Model: AHGG.241
Frequency Range: GPS 1575.42 MHz / BD 1561.02 MHz
Impedance: 50Ω
VSWR: ≤2.0
Gain: 3–5 dB
Polarization: RHCP
Connector & Cable: N/A
Material & Color: Ceramic / White
Mounting Type: DIP
Size: 12 × 12 × 4 mm to 25 × 25 × 4 mm (depending on model)
