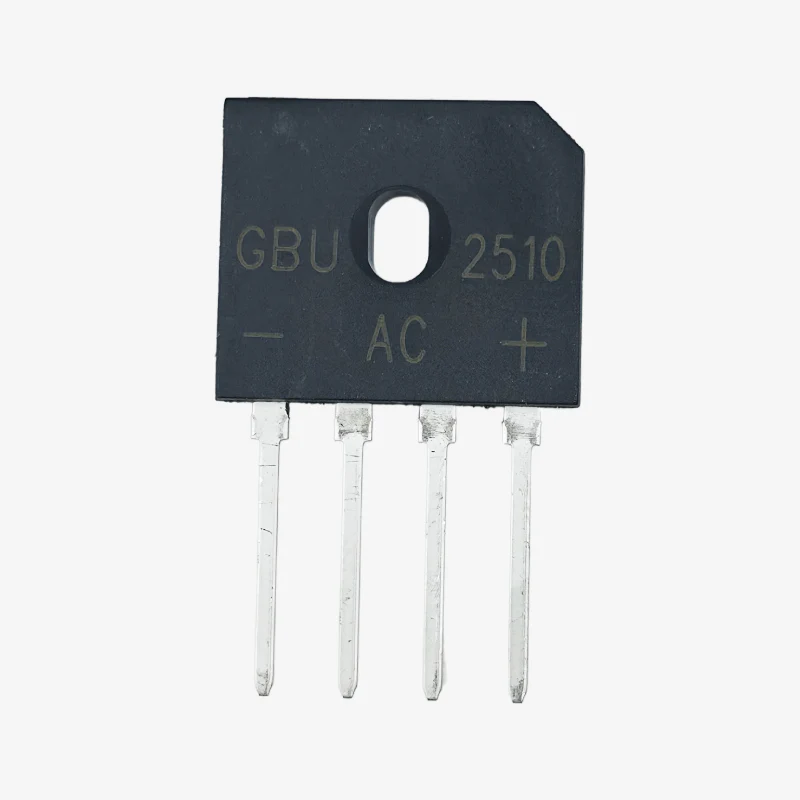

GBU2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBU2510 Bridge Rectifier 25A is a heavy-duty through-hole rectifier engineered for high-current AC to DC conversion. Featuring a glass-passivated die and thermally efficient molded case, it ensures stable performance under demanding loads. Ideal for industrial power supplies, UPS systems, and inverter applications.

CLICK HERE FOR DATASHEEET

Features:

1. High forward current capability up to 25A

2. Exceptional surge tolerance up to 350A

3. Glass-passivated die construction for superior reliability

4. 94V-0 flame-rated plastic body for safety

5. Versatile mounting and polarity marking for easy installation

Specifications:

• Average Forward Current (IF(AV)): 25A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Working Peak Reverse Voltage (VRWM): 1000V

• DC Blocking Voltage (VR): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 350A (8.3ms half-sine wave)

• Forward Voltage (VF): 1.1V at IF = 1.0A

• Reverse Current (IR) at 25°C: 10µA
• Reverse Current (IR) at 125°C: 500µA

• Typical Junction Capacitance (Cj): 70pF

• Thermal Resistance (RθJA / RθJL): 21°C/W / 4°C/W

• Operating Junction Temperature (TJ): -65°C to +150°C

• Storage Temperature (TSTG): -65°C to +150°C

Package Includes:

1 × GBU2510 25A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
