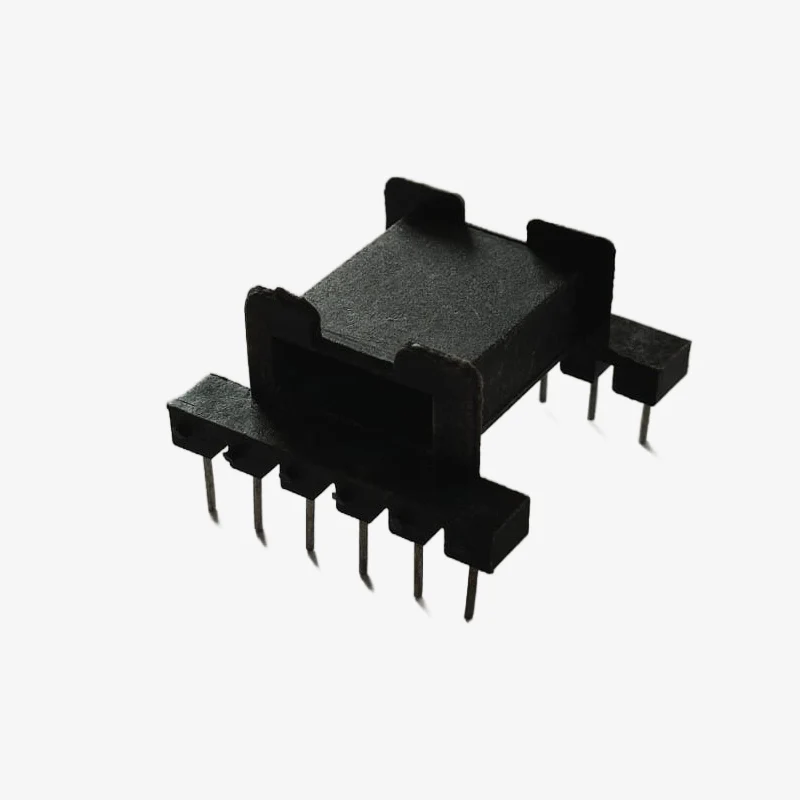

EFD30 Transformer Horizontal Bobbin 12 Pin

The EF30 Transformer Horizontal Bobbin (12 Pin) is designed for use in high-frequency transformers, particularly in switch-mode power supplies (SMPS). Its horizontal configuration offers a low-profile design that optimizes space on the PCB. This bobbin accommodates up to 12 pins, allowing for a flexible and efficient winding structure, suitable for power and signal applications in various electronic devices.

Features:

• Pin Configuration: 12 pins for versatile winding connections, ensuring better adaptability in transformer designs.
• Horizontal Design: Low-profile horizontal layout, making it suitable for applications with height restrictions.
• High-Quality Material: Made from durable thermoplastic with good insulation properties, ensuring long-term reliability.
• Efficient Winding: Optimized for efficient coil winding, reducing overall transformer size while maintaining performance.
• Mounting Type: Through-hole mounting for easy integration into PCBs.
• Heat and Electrical Stability: Built to handle high-frequency operations and high-temperature environments.

Specifications:

• Core Type: EF30
• Pin Count: 12
• Material: UL94-V0 rated thermoplastic for high electrical insulation and flammability resistance.
• Operating Temperature: -40°C to +125°C
• Mounting Type: Through-hole
• Dimensions: Standard EF30 dimensions (refer to datasheet for exact measurements)
• Applications: Ideal for use in SMPS transformers, inductors, power converters, and other high-frequency circuits.

This 12-pin EF30 transformer bobbin is an excellent choice for designing compact, high-efficiency transformers in space-constrained applications.
