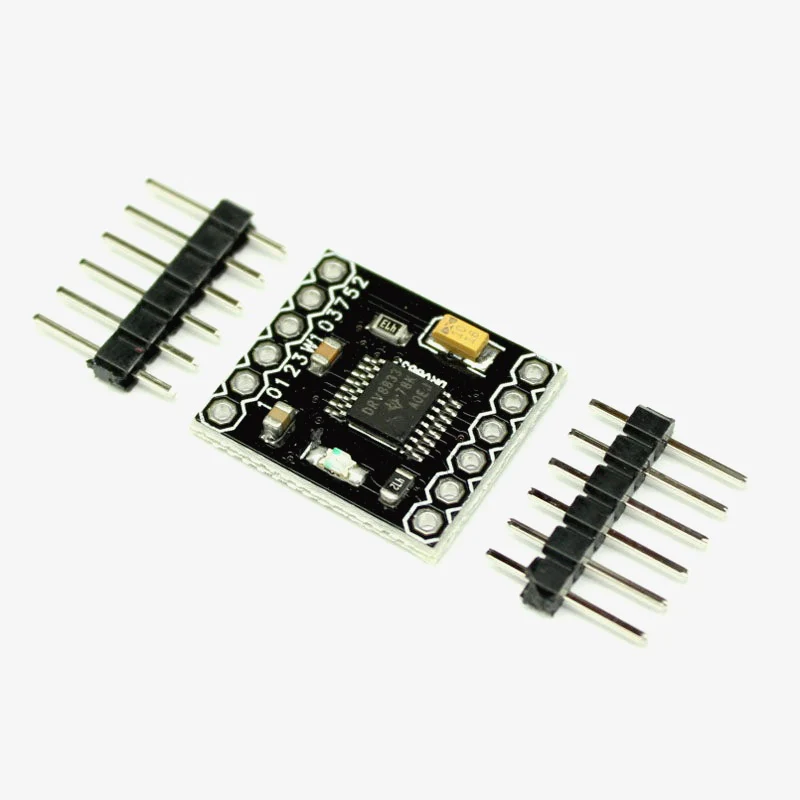

DRV8833 2 Channel DC Motor Driver Module
DRV8833 is a dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V.Ā The maximum supply current is limited up to about 1.2 A per channel continuously whereas the peak current rating is 2A per channel for a few seconds. It is a small and useful breakout board that comes with all components pre soldered in this module. The DRV8833 has built-in current-limiting, and no need for externally supplied logic voltage.
DRV8833 Module Board pinout:
Ā
Specifications:
- Dual-H-bridge motor driver:Ā
- Operating voltage: 2.7āā V to 10.8 V
- Output current: 1.2 A continuous (2 A peak) per motor.
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
- 3V- and 5V Logic Voltage compatible
- Under-voltage lockout and protection against over-current and over-temperature.
- Reverse-voltage protection circuit.
- Current limiting can be enabled by adding sense resistors.
DRV8833 Module Board Dimension and footprint:
DRV8833 Module Board Applications:
- Motor Control
- Industrial Automations
- Solenoid Control
- Small Robotics
Example Projects on DRV8833 Module Board:
DRV8833 Interfacing With Arduino
Additional Resources:
Ā
Package Contains
1x DRV8833 Module Board
More Images
DRV8833 2 Channel DC Motor Driver Module
DRV8833 is a dual H-bridge motor driver IC that can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V.Ā The maximum supply current is limited up to about 1.2 A per channel continuously whereas the peak current rating is 2A per channel for a few seconds. It is a small and useful breakout board that comes with all components pre soldered in this module. The DRV8833 has built-in current-limiting, and no need for externally supplied logic voltage.
DRV8833 Module Board pinout:
Ā
Specifications:
- Dual-H-bridge motor driver:Ā
- Operating voltage: 2.7āā V to 10.8 V
- Output current: 1.2 A continuous (2 A peak) per motor.
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
- 3V- and 5V Logic Voltage compatible
- Under-voltage lockout and protection against over-current and over-temperature.
- Reverse-voltage protection circuit.
- Current limiting can be enabled by adding sense resistors.
DRV8833 Module Board Dimension and footprint:
DRV8833 Module Board Applications:
- Motor Control
- Industrial Automations
- Solenoid Control
- Small Robotics
Example Projects on DRV8833 Module Board:
DRV8833 Interfacing With Arduino
Additional Resources:
Ā
Package Contains
1x DRV8833 Module Board
