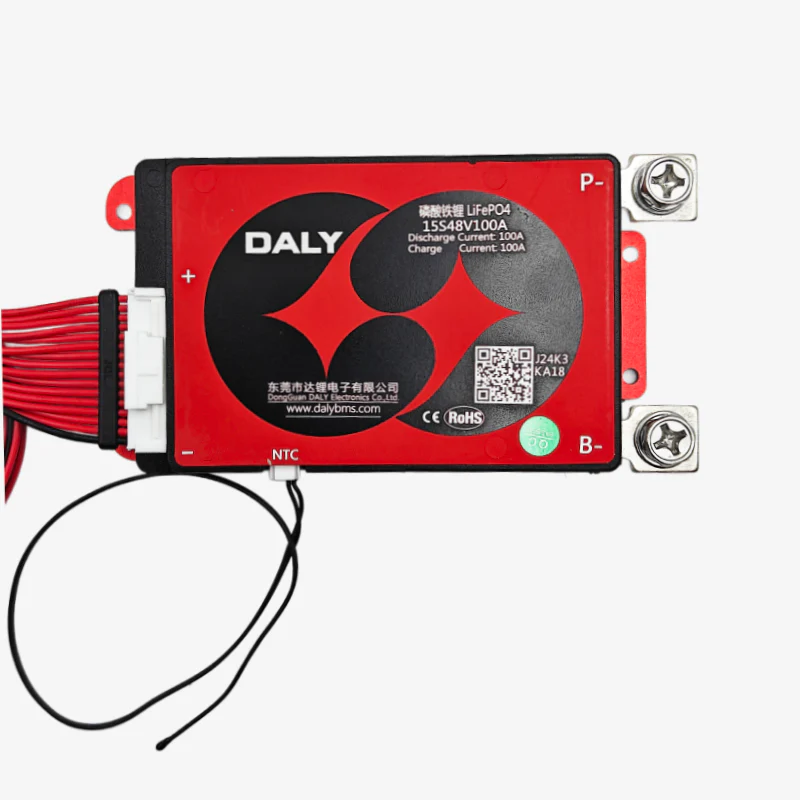

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board
HomeStore

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board

DALY LiFePo4 15S 48V 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.

DALY LiFePo4 15S 48V 100A Waterproof BMS Features:

  • State of charge calculations.
  • Cell over-voltage and under-voltage protection.
  • Intelligent battery balancing (passive).
  • Fully sealed waterproof design with dustproof, shockproof, and anti-squeezing protection.

DALY LiFePo4 15S 48V 100A Waterproof  BMS Specification:

Specification Value
Model LiFePo4 15S 48V 100A
Charge Voltage (V) 54.75
Charge Current (A) 100
Balance Current (mA) 30±5
Balance Detect Voltage (V) 3.50
Working Current (uA) 100
Overcharge Detect Voltage (V) 3.75±0.05
Overcharge Release Voltage (V) 3.55±0.05
Over Discharge Detect (V) 2.2±0.1
Over Discharge Release (V) 2.5±0.1
Working Temperature Range (°C) -20 to 70
Length (mm) 125
Width (mm) 65
Height (mm) 13


Explore wide range of DALY Smart BMS >

Package Includes:

1 x DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board

$14.97

Original: $49.89

-70%
DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board—

$49.89

$14.97

More Images

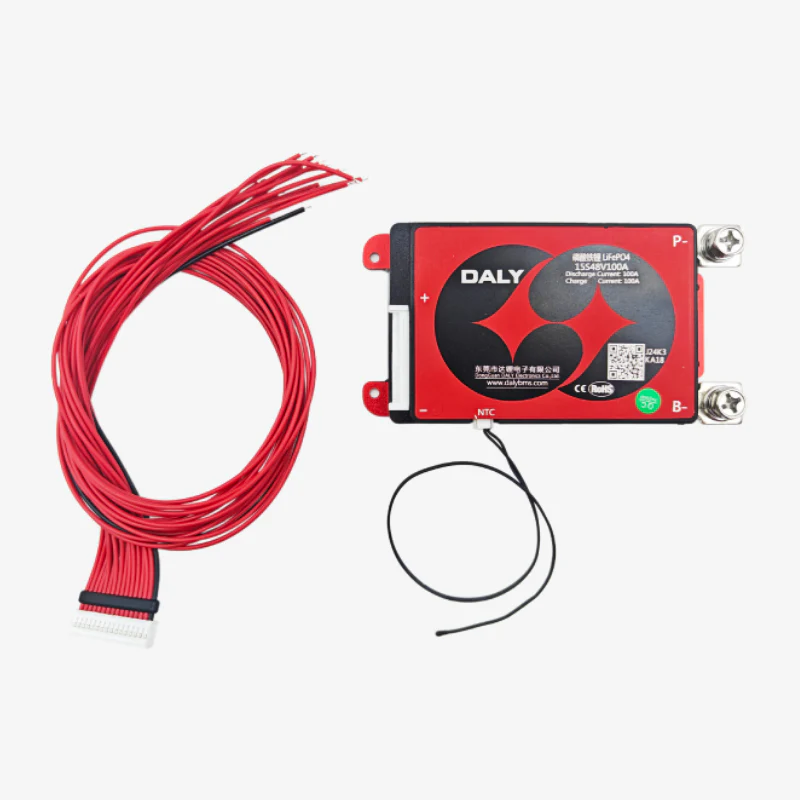

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board - Image 2

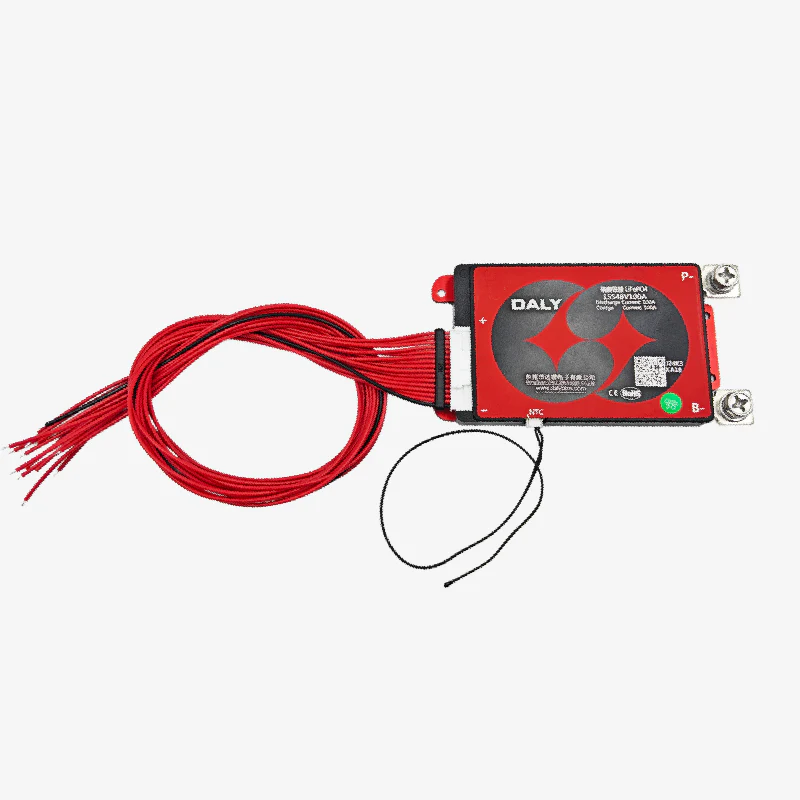

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board - Image 3

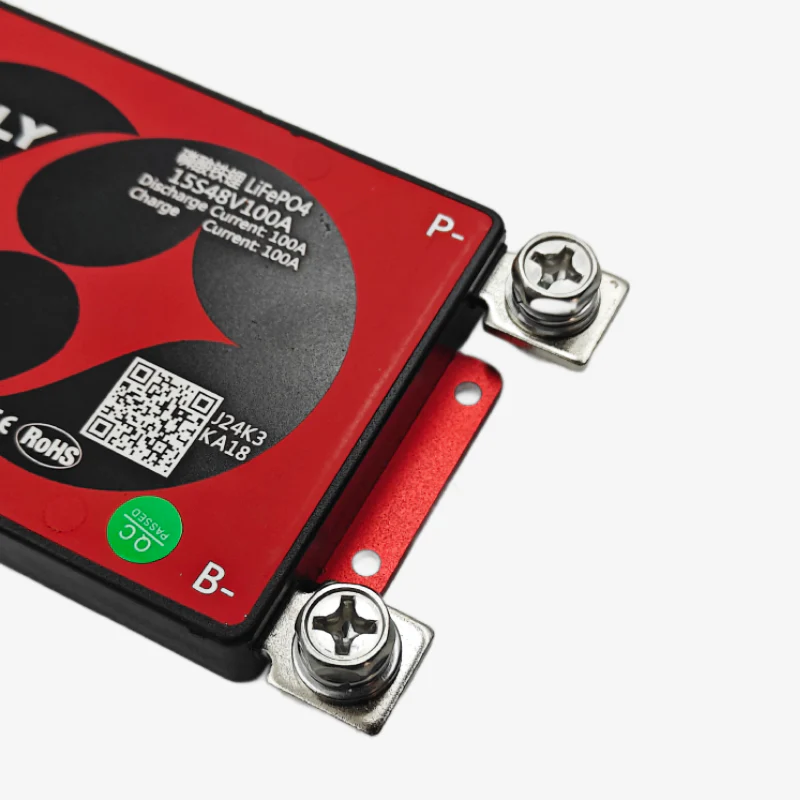

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board - Image 4

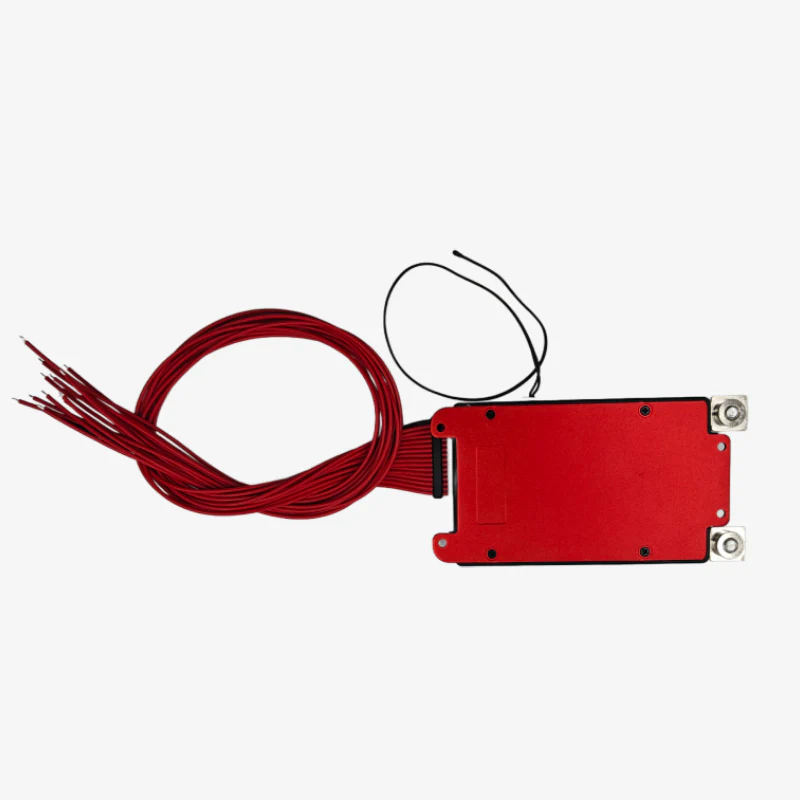

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board - Image 5

DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board

DALY LiFePo4 15S 48V 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePo4 battery packs. It employs an A-level protective integrated circuit (IC) that ensures robust safety and efficient performance. Its high load capability with a 100A continuous discharge current makes it an ideal solution for high-demand battery applications. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, while an integrated heat sink significantly aids in cooling.

DALY LiFePo4 15S 48V 100A Waterproof BMS Features:

  • State of charge calculations.
  • Cell over-voltage and under-voltage protection.
  • Intelligent battery balancing (passive).
  • Fully sealed waterproof design with dustproof, shockproof, and anti-squeezing protection.

DALY LiFePo4 15S 48V 100A Waterproof  BMS Specification:

Specification Value
Model LiFePo4 15S 48V 100A
Charge Voltage (V) 54.75
Charge Current (A) 100
Balance Current (mA) 30±5
Balance Detect Voltage (V) 3.50
Working Current (uA) 100
Overcharge Detect Voltage (V) 3.75±0.05
Overcharge Release Voltage (V) 3.55±0.05
Over Discharge Detect (V) 2.2±0.1
Over Discharge Release (V) 2.5±0.1
Working Temperature Range (°C) -20 to 70
Length (mm) 125
Width (mm) 65
Height (mm) 13


Explore wide range of DALY Smart BMS >

Package Includes:

1 x DALY LiFePo4 15S 48V 100A Waterproof Battery Management System - BMS Protection Board
