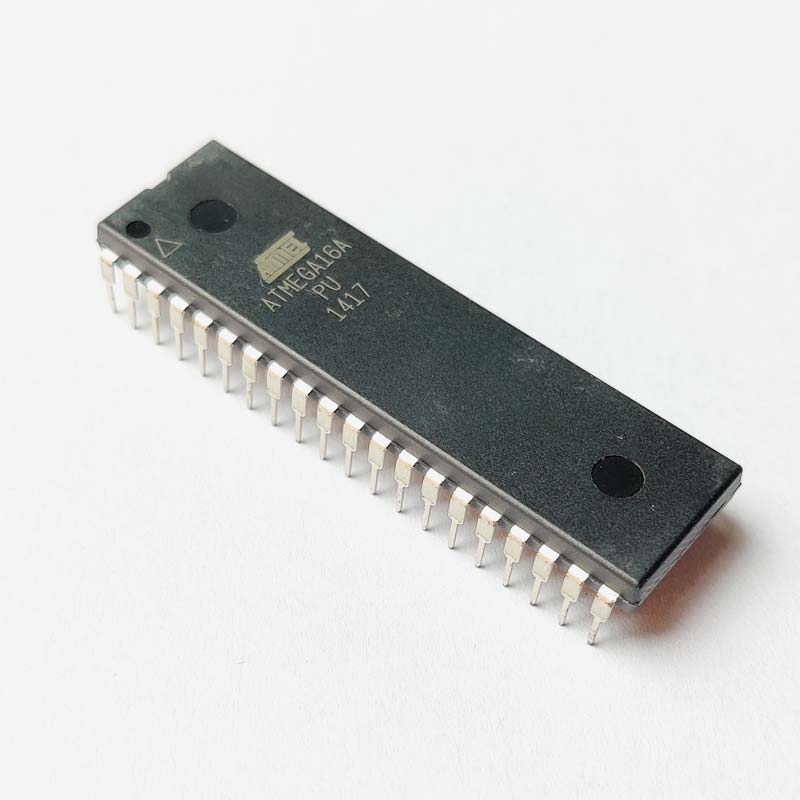

ATMEGA16A-PU Microcontroller

If you are looking for a 16K bytes flash microcontroller unit, then the ATMEGA16A is a 16Kbit low power high-performance CMOS Microcontroller based on the Atmel AVR enhanced RISC architecture.

With the 16kB self-programming flash program memory it is powered by the 1024B SRAM and 512-byte EEPROM it has peripheral support of 8 channel 10-bit Analog to Digital converter. For debugging and Programming, it has a JTAG interface for on-chip-debug. It can operate from 2.7V to 5.5V operating voltages. Peripheral support includes SPI, Timer, USART.

Atmega16a pinout:



Atmega16 features, specification

Features: -

1. It has advanced RISC architecture
2. 32 Programmable I/O Pins for with multiple operations
3. Internal Calibrated RC oscillator
4. Real-time counter that uses separate oscillator
5. Power-on reset (POR) and programmable brown-out detection
6. External and internal interrupt sources
7. Mode of operations - Idle, ADC noise reduction, power-save, power-down, standby and extended standby

Specification: -

• Package/Case   :  PDIP-40
• Minimum Supply Voltage (V)     :   7V
• Maximum Supply Voltage (V)     :   5V
• of Timers/Counters     :   3 Timers
• of I/Os       :    32
• Architecture    :   8-bit Microcontrollers – MCU
• Product Series           :        ATmega16A
• Maximum Clock Frequency (MHz)  :  16
• Data Bus Width        :    8 bit
• Interface Supports     :   2-Wire, SPI, USART
• Mounting Type               :     Through Hole, DIP Package
• Program Memory Size (kB)     :   16
• Data RAM size and Type     :   1KB SRAM
• Data ROM Size and Type   :   512-B EEPROM
• Operating Temperature Range (°C)   :-24 to 85



Atmega16a Applications:

• Data logging
• Controlled Operations
• Data processing and small applications where Input output single bit data transfer is required.
• Sensor Integration
• Computer and Microcontroller communications

Atmega16a Dimension and footprint:



Package Contains

1x Atmega16A-PU Microcontroller (DIP Package)
