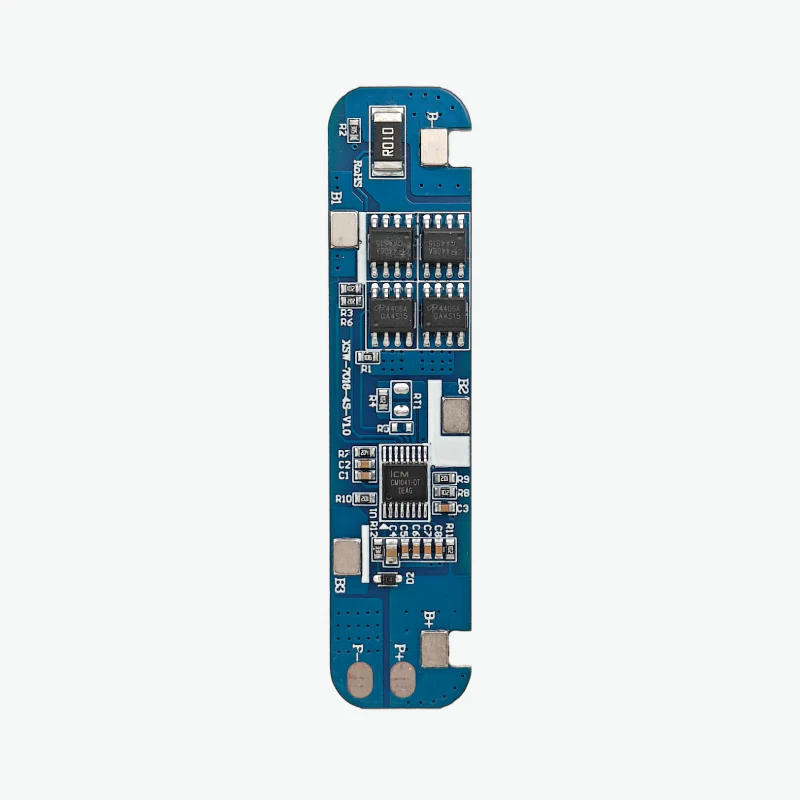

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells
HomeStore

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells

Ā This is a BMS with 10A Current and a 16.8V voltage rating to charge 4 cells of Li-ion cells. The module comes with overcharge protection, over-discharge protection, short circuit, and over current protection features.

Ā Specifications:

  • Model : HX-4S-A01
  • Size : 72mm*17mm*3mm
  • Upper limit working current : 4A~6A
  • Upper limit instantaneous current : 10A~13A
  • Static Current :Ā  Less than 30uA
  • Overcharge Voltage Range : 4.25v~4.35Ā±0.05v
  • Overdischarge voltage range : 2.3V~3.0vĀ±0.05v
  • Working temperature : -40~+60ā„ƒ

Ā Package Includes:

Ā 1 x 4S 10A Li-ion Battery Protection BMS Board for 3.7V NMC Cells

$1.40
4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cellsā€”
$1.40

More Images

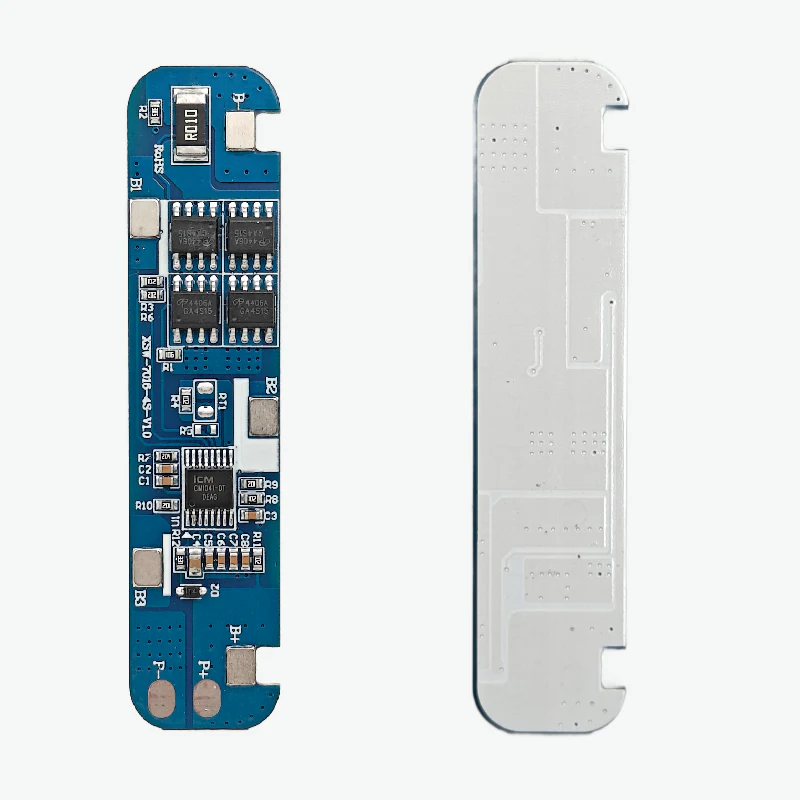

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 2
4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 3

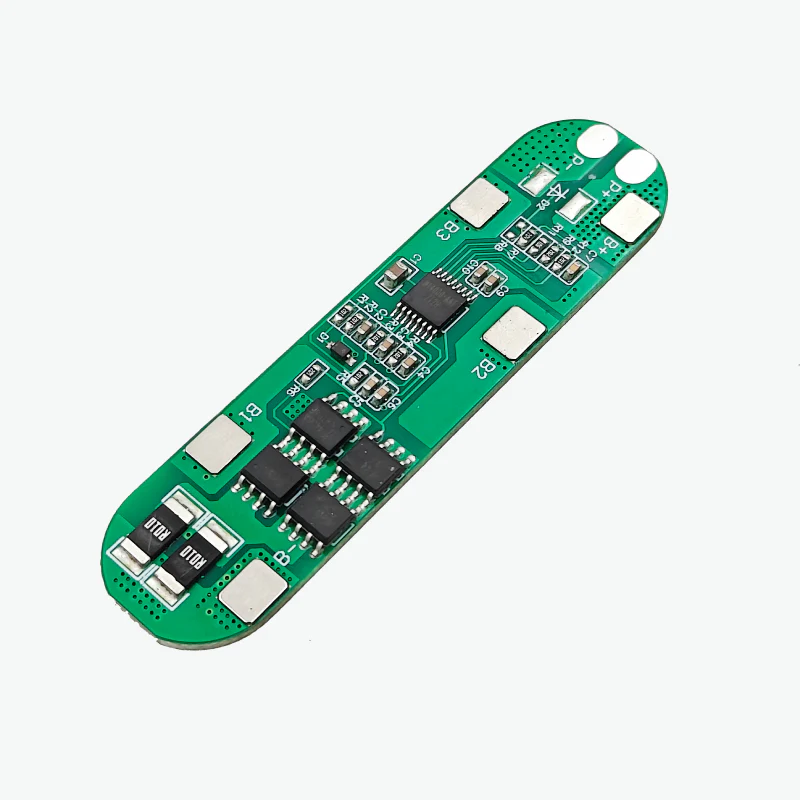

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 4

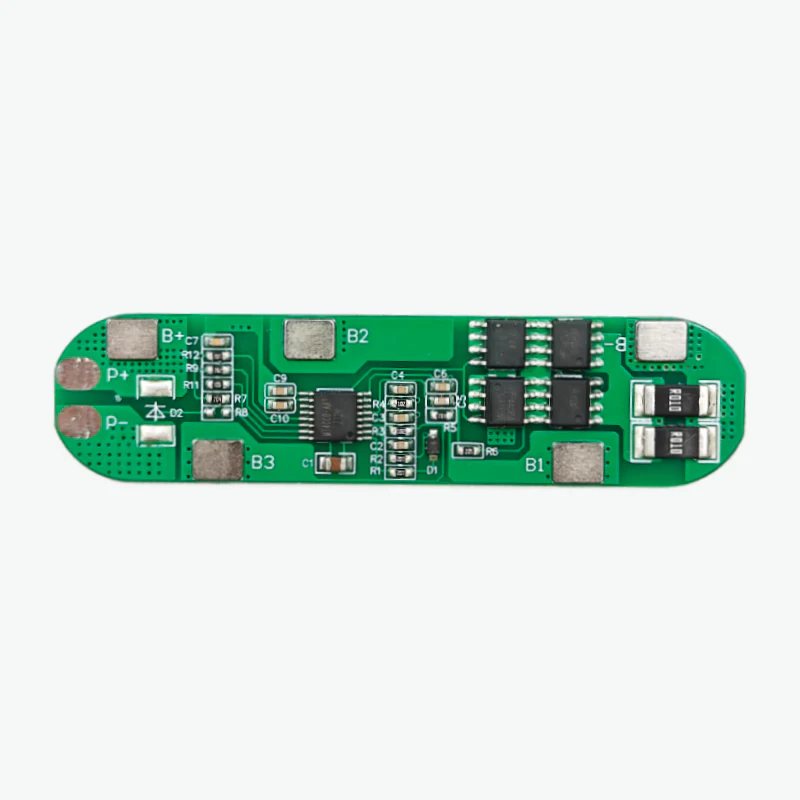

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 5
4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 6

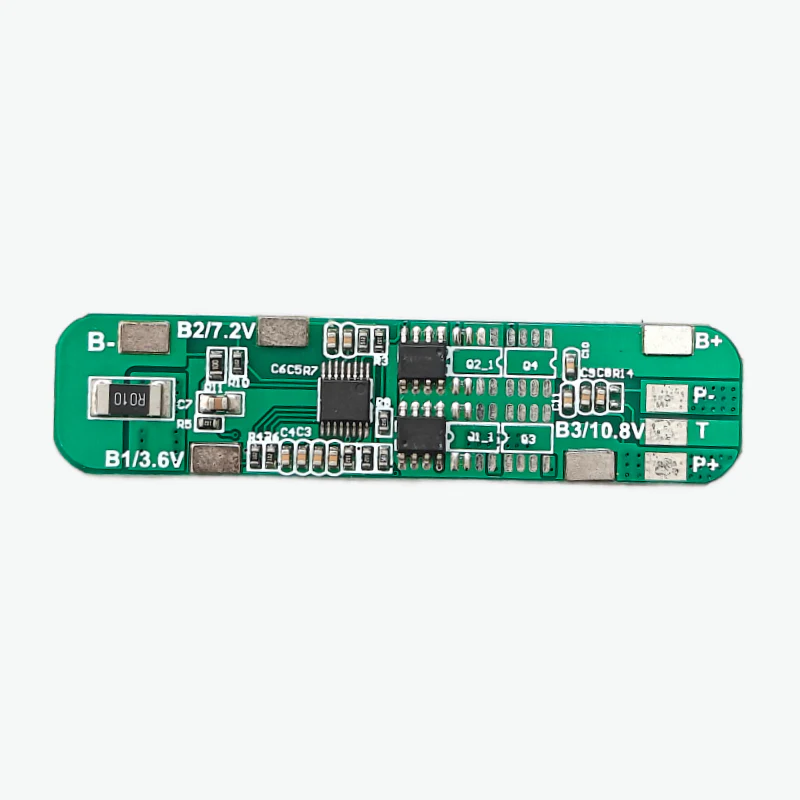

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 7
4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 8

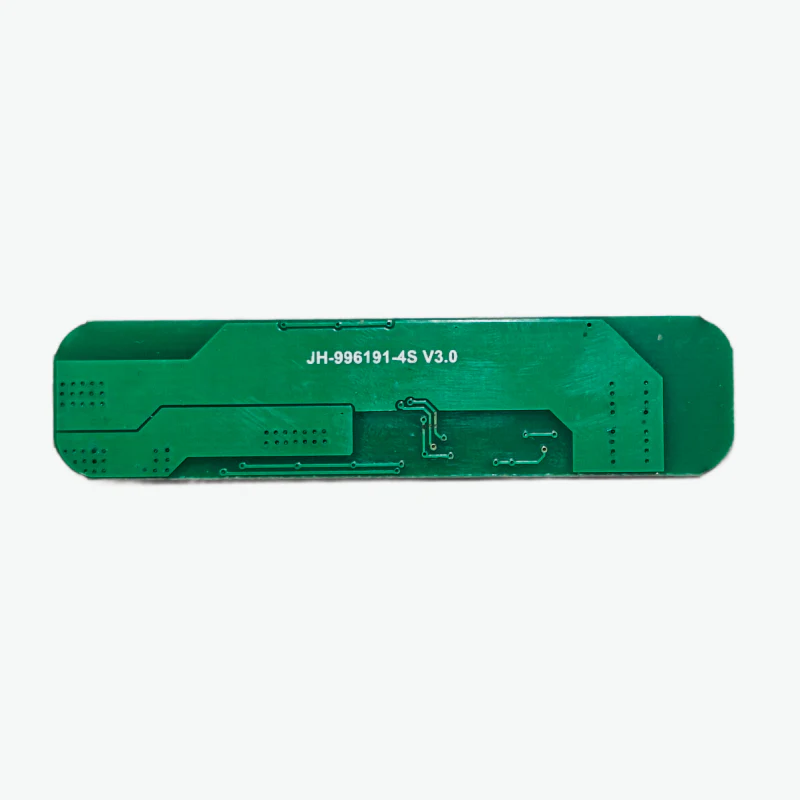

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 9

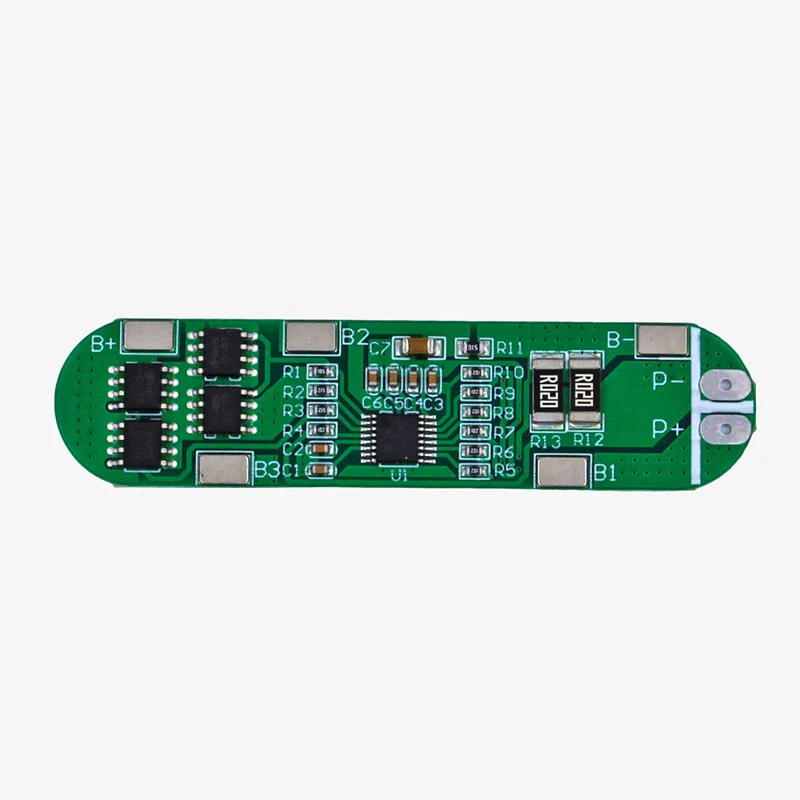

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 10
4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 11

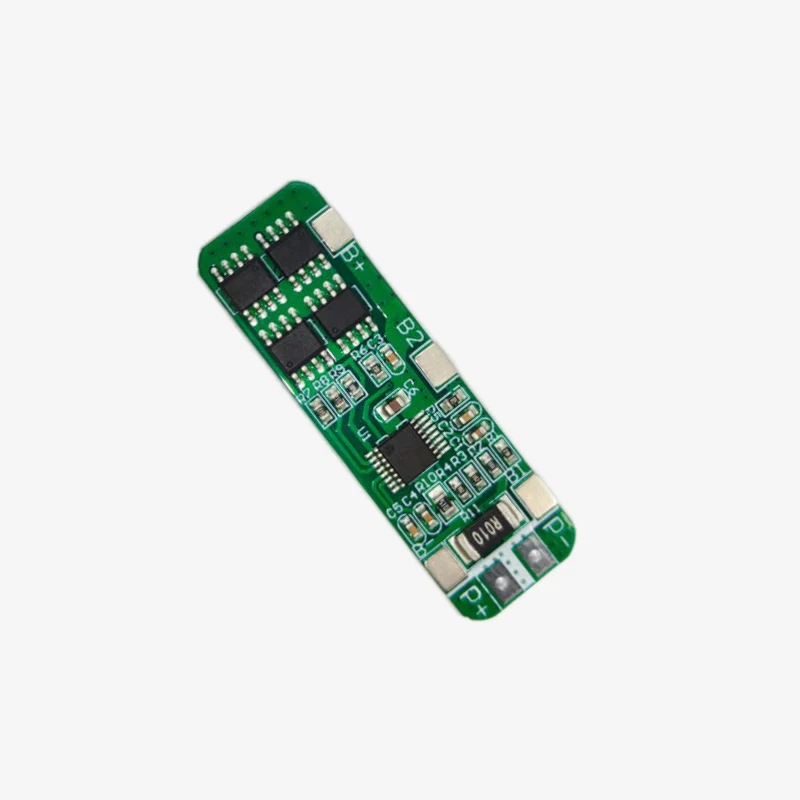

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells - Image 12
