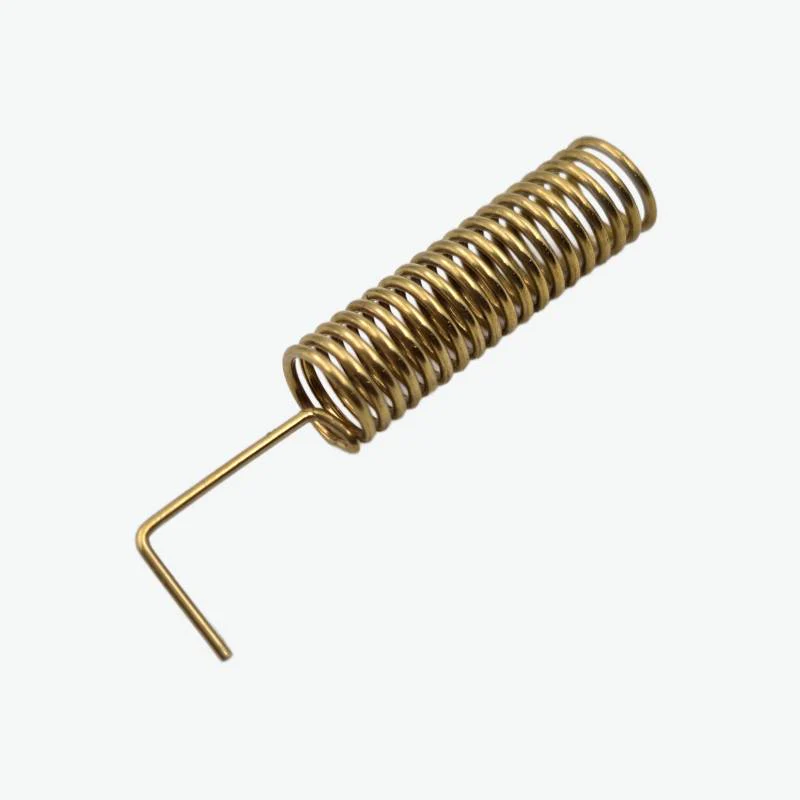

AntennaHome AH1G.301 433MHz 1dBi Spring Helix Antenna

The AntennaHome AH1G.301 433MHz 1dBi Spring Helix Antenna is a compact and efficient antenna designed for ISM band communication systems. Its spring-type structure provides stable signal transmission while maintaining a small footprint, making it ideal for LoRa, remote control, and wireless data transmission applications.

Features:

1. Compact helical spring design for space-efficient installation

2. Optimized for 433MHz ISM band systems

3. Provides stable and reliable signal transmission

4. Vertical omni-directional radiation pattern for wide coverage

5. DIP mounting for easy PCB integration

Specifications:

• Model: AH1G.301
• Frequency: 433 MHz

• Impedance: 50Ω

• VSWR: ≤2.0

• Gain: 1.0 dBi

• Polarization: Vertical / Omni

• Mounting Type: DIP

• Material: Copper

• Color: Copper

• Size: 5.5 × 36.0 mm

• Weight: 0.8 g

• Operating Temperature: -40°C to +85°C

Package Includes:

1 × 433MHz 1dBi Spring DIP Antenna
