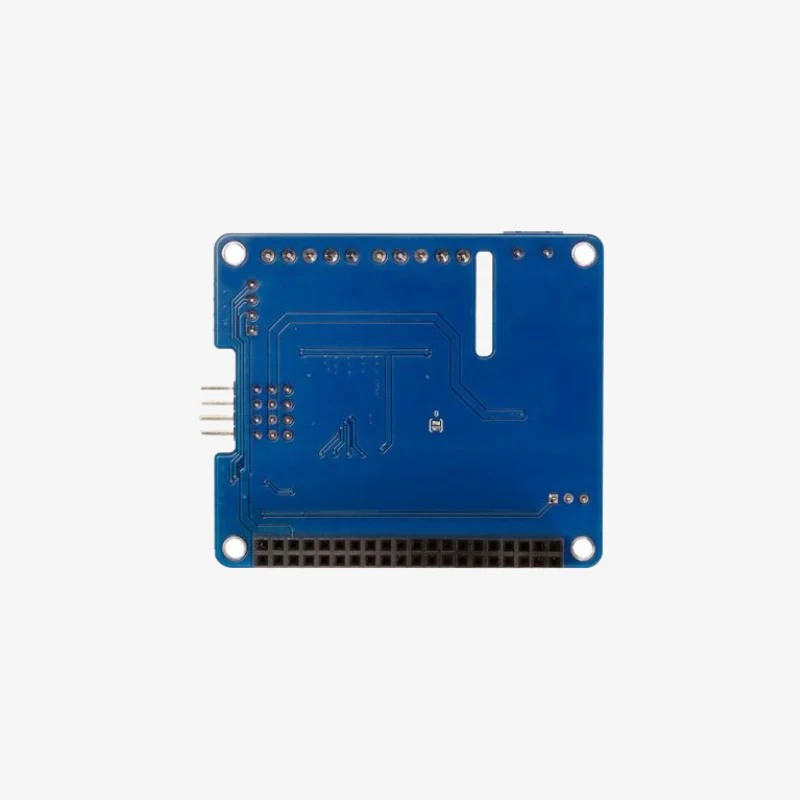

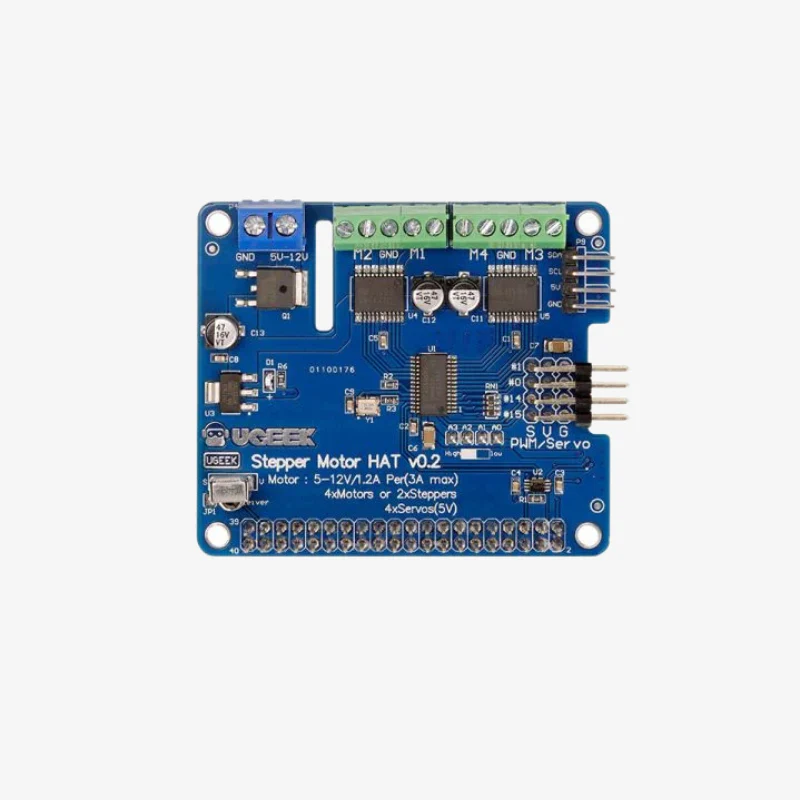

Elecrow Stepper Motor HAT for Raspberry Pi

The Raspberry Pi Stepper Motor HAT allows control of multiple stepper and gear motors, ideal for DIY robots and smart cars. Its I2C interface supports 3.3V/5V logic for easy connection with sensors and other expansion boards.

Features:

1. Supports 2 stepping motors and 4 gear motors (6V–12V)

2. 16 PWM channels with 12-bit resolution

3. Four H-bridges with 1.2A continuous (3A peak)

Specifications:

• Working Voltage: 5V–12V

• Interface: I2C

• Size: 65 × 56 × 21 mm

• Weight: 0.02 kg

Package Includes:

1 × Stepper Motor HAT for Raspberry Pi
