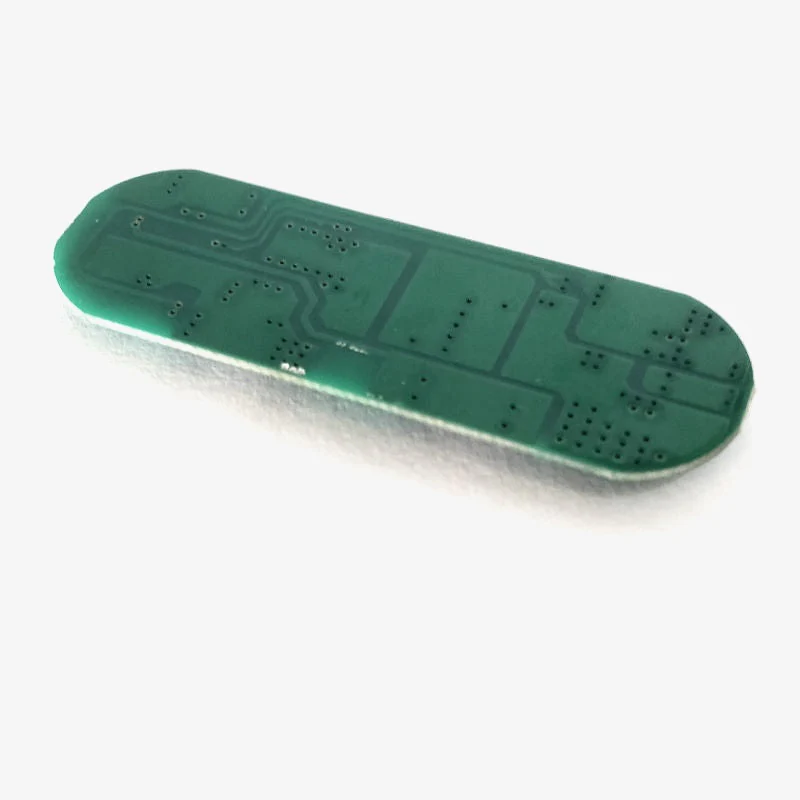

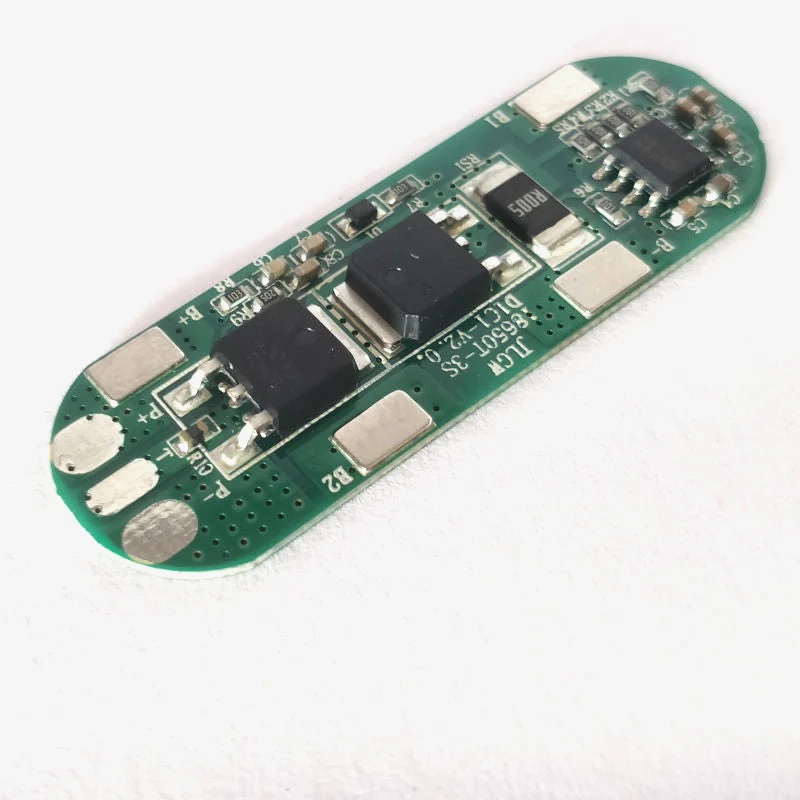

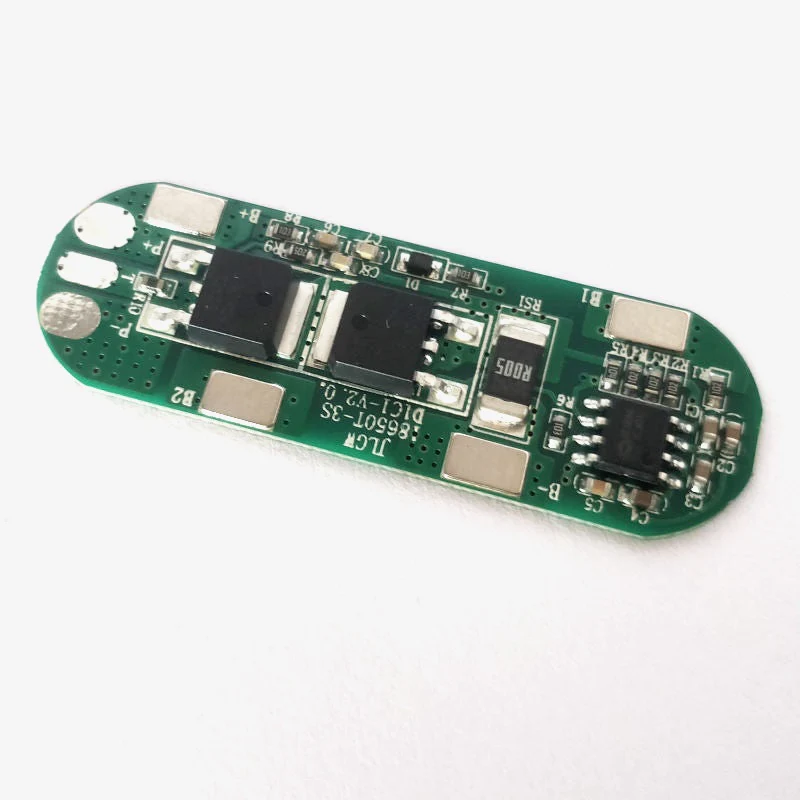

3S 5A Lithium Battery Protection BMS Module for 3.7V NMC cells
The 3S 5A Lithium Battery BMS Module protects 3-cell (3S) 3.7V NMC battery packs with overcharge, over-discharge, short circuit, and overcurrent protection. It supports 6A continuous discharge and features passive balancing for improved battery life.
Specifications:
- Working Current: 3A
- Maximum Peak Current: 5A
- Overcharge Voltage Range: 4.25-4.35V per cell
- Over-Discharge Voltage: 2.3-3.0V
- Quiescent Current: <30µA
Package Includes:
1 x 3S 5A Li-ion Battery BMS Module
Original: $1.04
-70%$1.04
$0.31More Images
3S 5A Lithium Battery Protection BMS Module for 3.7V NMC cells
The 3S 5A Lithium Battery BMS Module protects 3-cell (3S) 3.7V NMC battery packs with overcharge, over-discharge, short circuit, and overcurrent protection. It supports 6A continuous discharge and features passive balancing for improved battery life.
Specifications:
- Working Current: 3A
- Maximum Peak Current: 5A
- Overcharge Voltage Range: 4.25-4.35V per cell
- Over-Discharge Voltage: 2.3-3.0V
- Quiescent Current: <30µA
Package Includes:
1 x 3S 5A Li-ion Battery BMS Module
