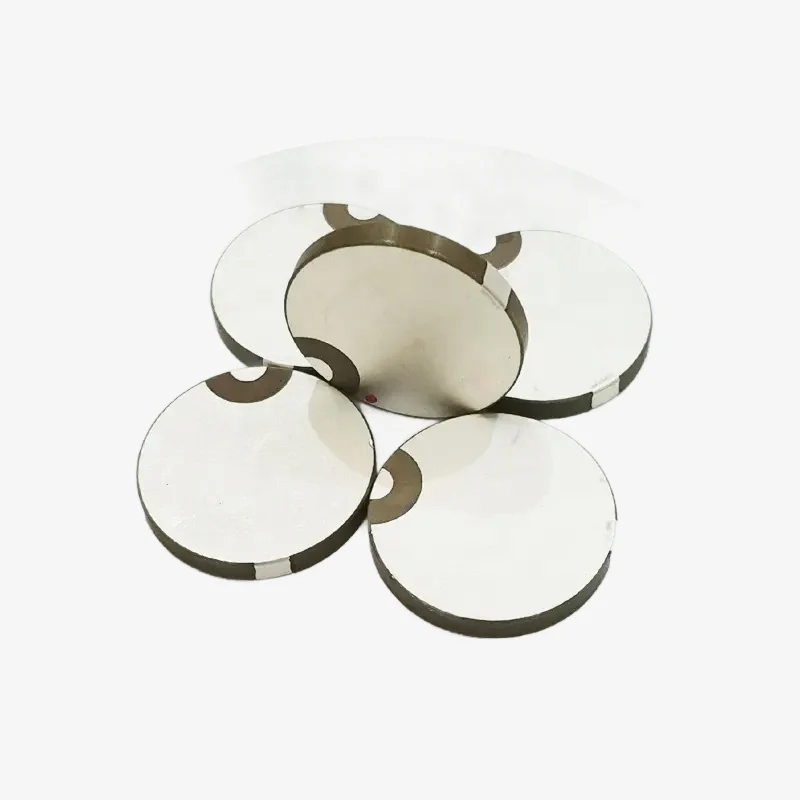

35mm PZT Element Vibration Disc Ultrasonic Piezo Ceramic Transducer (35x3mm) - Poles in the Same Side
35mm PZT Element Vibration Disc Ultrasonic Piezo Ceramic Transducer (35x3mm) - Poles in the Same Side
This piezoelectric disc, measuring 35mm in diameter and 3mm in thickness, features poles on the same side, ensuring ease of integration and reliable performance.
Technical Specifications:
- Material: Lead Zirconate Titanate (PZT)
- Diameter: 35mm
- Thickness: 3mm
- Polarity: Poles on the same side
- Thickness Frequency: 63MHz
- Capacitance: 3100+-12.5% pF
- Impedance: <3 Ohm
- Product Weight: 25g
$6.29
35mm PZT Element Vibration Disc Ultrasonic Piezo Ceramic Transducer (35x3mm) - Poles in the Same Side—
$6.29
More Images
35mm PZT Element Vibration Disc Ultrasonic Piezo Ceramic Transducer (35x3mm) - Poles in the Same Side
This piezoelectric disc, measuring 35mm in diameter and 3mm in thickness, features poles on the same side, ensuring ease of integration and reliable performance.
Technical Specifications:
- Material: Lead Zirconate Titanate (PZT)
- Diameter: 35mm
- Thickness: 3mm
- Polarity: Poles on the same side
- Thickness Frequency: 63MHz
- Capacitance: 3100+-12.5% pF
- Impedance: <3 Ohm
- Product Weight: 25g
