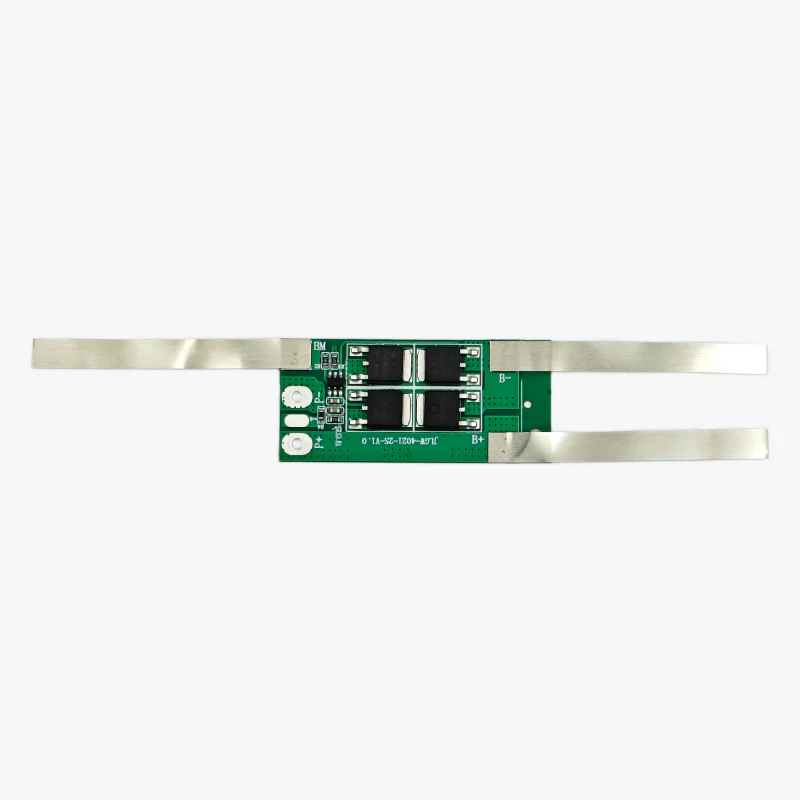

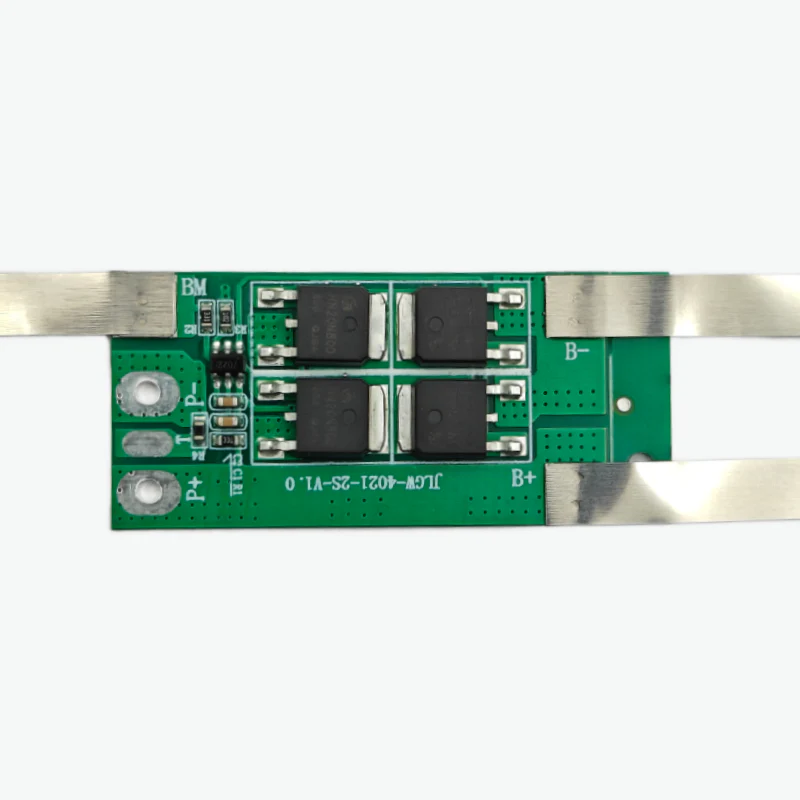

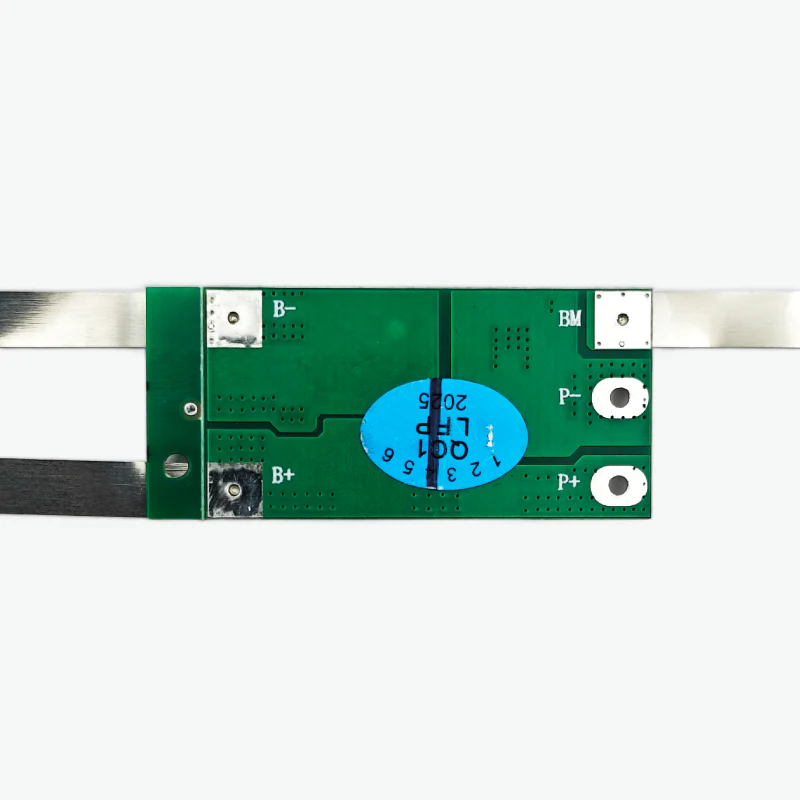

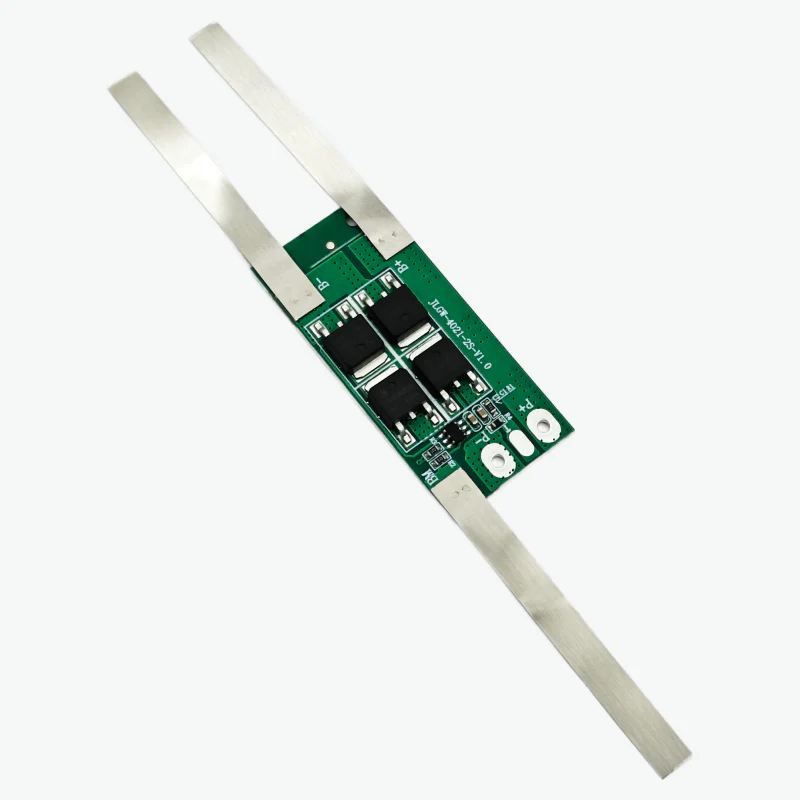

2S 10A LiFePO4 Battery Protection BMS Module with Nickel Strip for 3.2V Cells
The 2S 10A Lithium Iron Phosphate LFP Battery Protection BMS Module is designed for 3.2V LiFePO₄ cells connected in a 2-series configuration (6.4V nominal). It provides essential protections such as overcharge, over-discharge, overcurrent, and short circuit, ensuring long life and safety for LiFePO₄ battery packs. With a continuous 10A discharge rating and included nickel strips, this module is ideal for compact DIY power banks, solar storage, e-bikes, and robotics projects using LiFePO₄ chemistry.
Features of 2S 10A LiFePO₄ Battery Protection BMS Module:
- Designed for 2S (6.4V nominal) LiFePO₄ battery packs
- Continuous discharge current of up to 10A
- Overcharge and over-discharge protection tailored for LiFePO₄ chemistry
- Short circuit and overcurrent protection
- Nickel strips provided for easy battery assembly
- Lightweight and compact for embedded power systems
Specifications of 2S 10A LiFePO₄ Battery Protection BMS Module:
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Configuration: 2S (6.4V nominal)
- Continuous Discharge Current: 10A
- Charging Voltage: 7.3V
- Overcharge Detection Voltage: ~3.65V ± 0.05V
- Over-discharge Detection Voltage: ~2.0V ± 0.1V
- Short Circuit Protection: Yes
- Operating Temperature: -20°C to +60°C
Package Includes:
1 × 2S 10A LiFePO₄ BMS Module
More Images
2S 10A LiFePO4 Battery Protection BMS Module with Nickel Strip for 3.2V Cells
The 2S 10A Lithium Iron Phosphate LFP Battery Protection BMS Module is designed for 3.2V LiFePO₄ cells connected in a 2-series configuration (6.4V nominal). It provides essential protections such as overcharge, over-discharge, overcurrent, and short circuit, ensuring long life and safety for LiFePO₄ battery packs. With a continuous 10A discharge rating and included nickel strips, this module is ideal for compact DIY power banks, solar storage, e-bikes, and robotics projects using LiFePO₄ chemistry.
Features of 2S 10A LiFePO₄ Battery Protection BMS Module:
- Designed for 2S (6.4V nominal) LiFePO₄ battery packs
- Continuous discharge current of up to 10A
- Overcharge and over-discharge protection tailored for LiFePO₄ chemistry
- Short circuit and overcurrent protection
- Nickel strips provided for easy battery assembly
- Lightweight and compact for embedded power systems
Specifications of 2S 10A LiFePO₄ Battery Protection BMS Module:
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Configuration: 2S (6.4V nominal)
- Continuous Discharge Current: 10A
- Charging Voltage: 7.3V
- Overcharge Detection Voltage: ~3.65V ± 0.05V
- Over-discharge Detection Voltage: ~2.0V ± 0.1V
- Short Circuit Protection: Yes
- Operating Temperature: -20°C to +60°C
Package Includes:
1 × 2S 10A LiFePO₄ BMS Module
