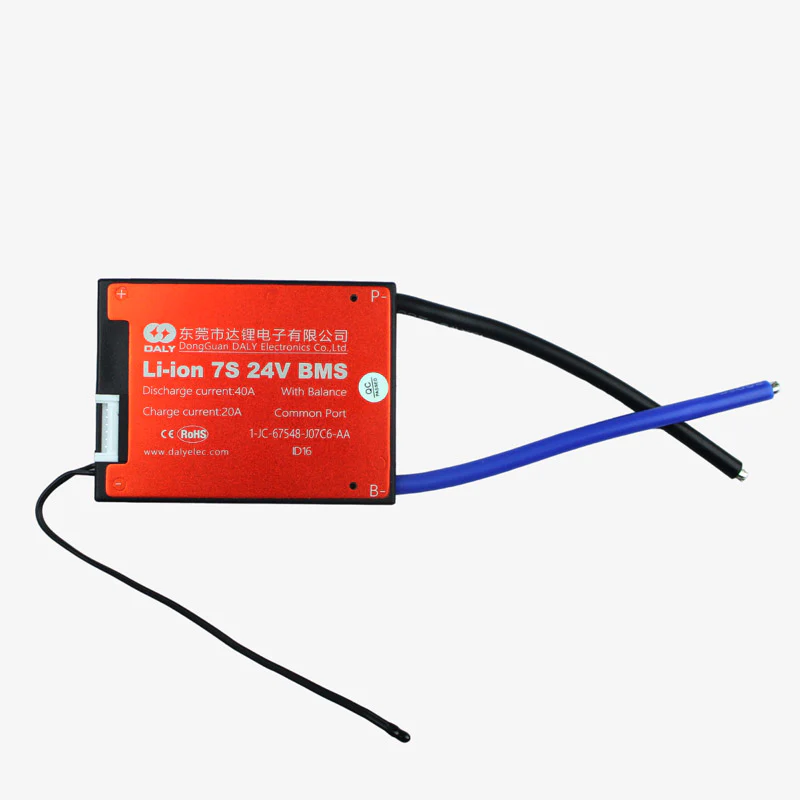

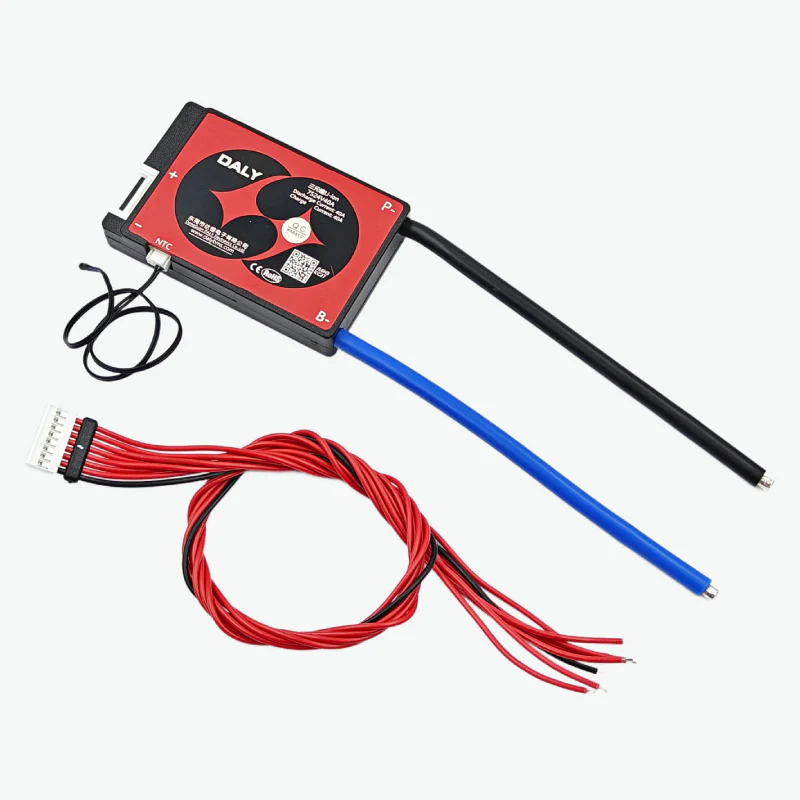

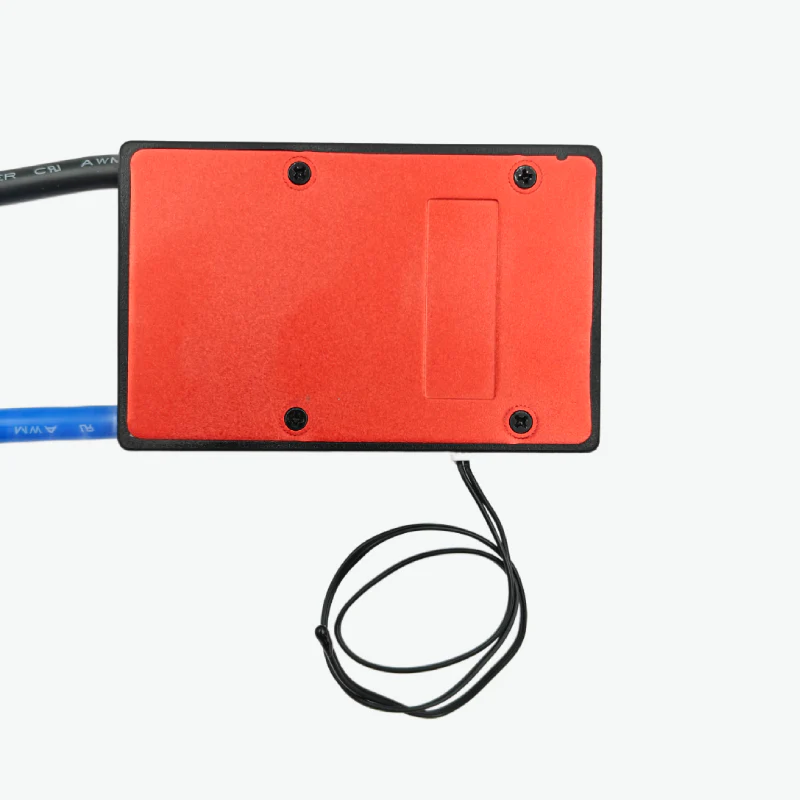

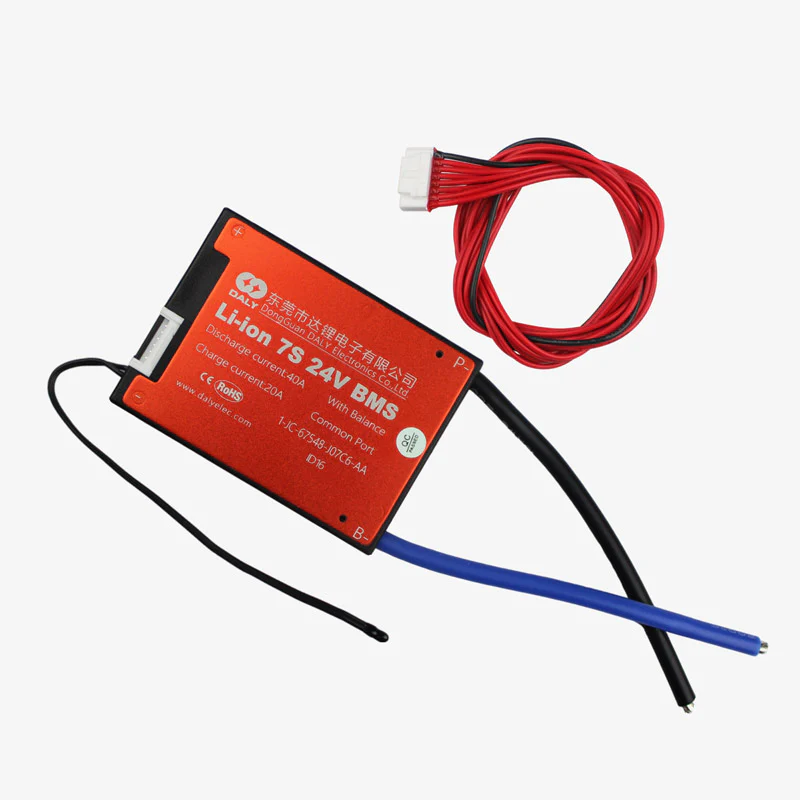

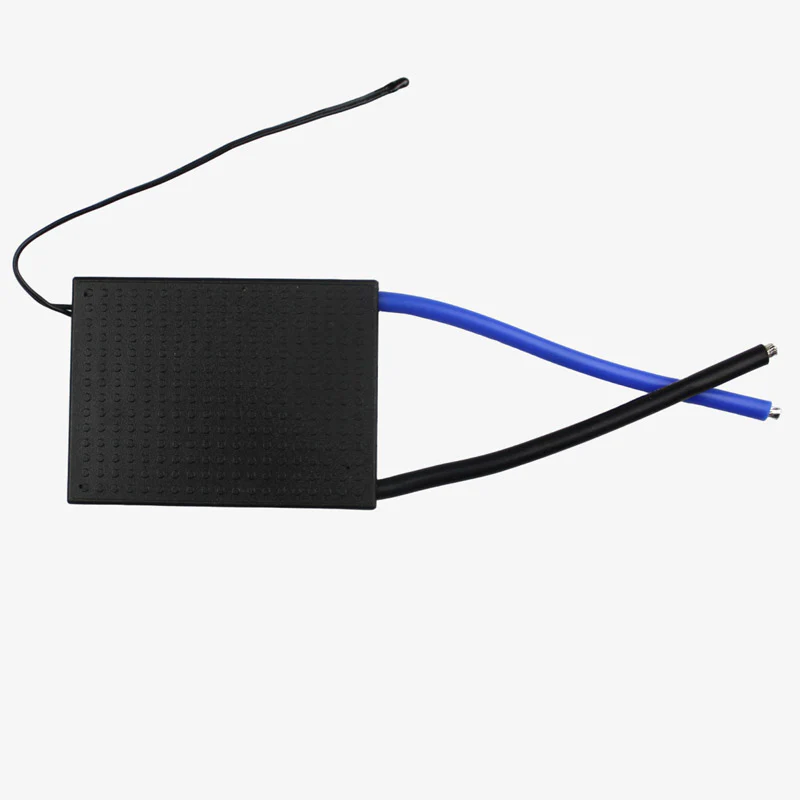

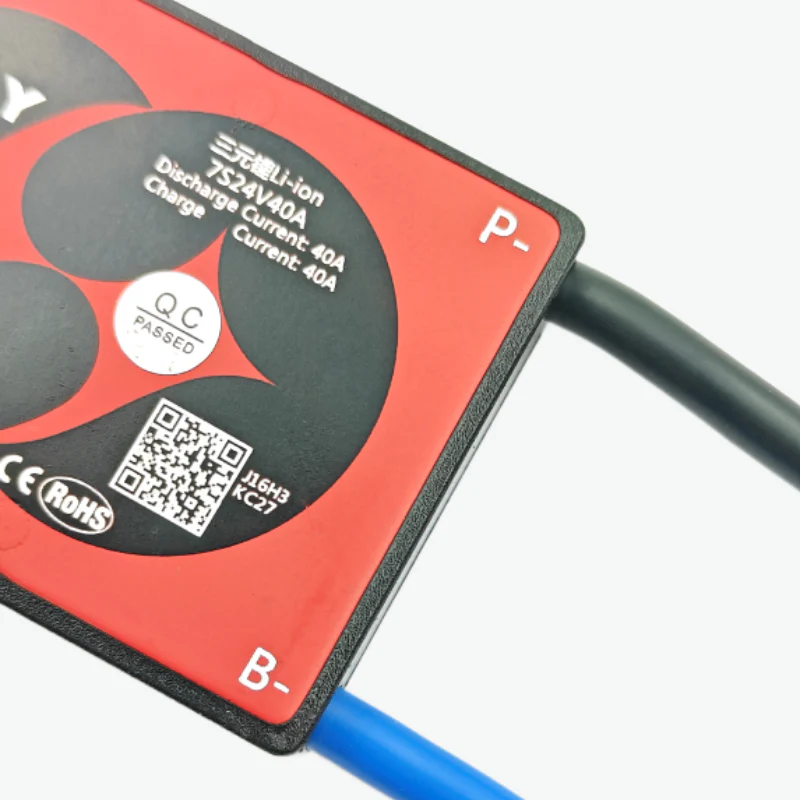

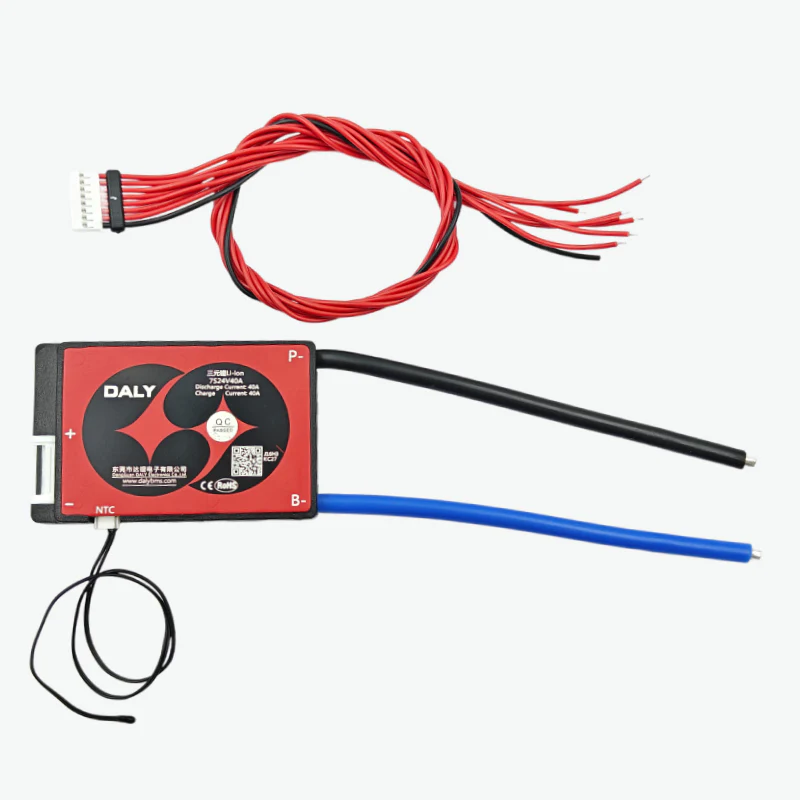

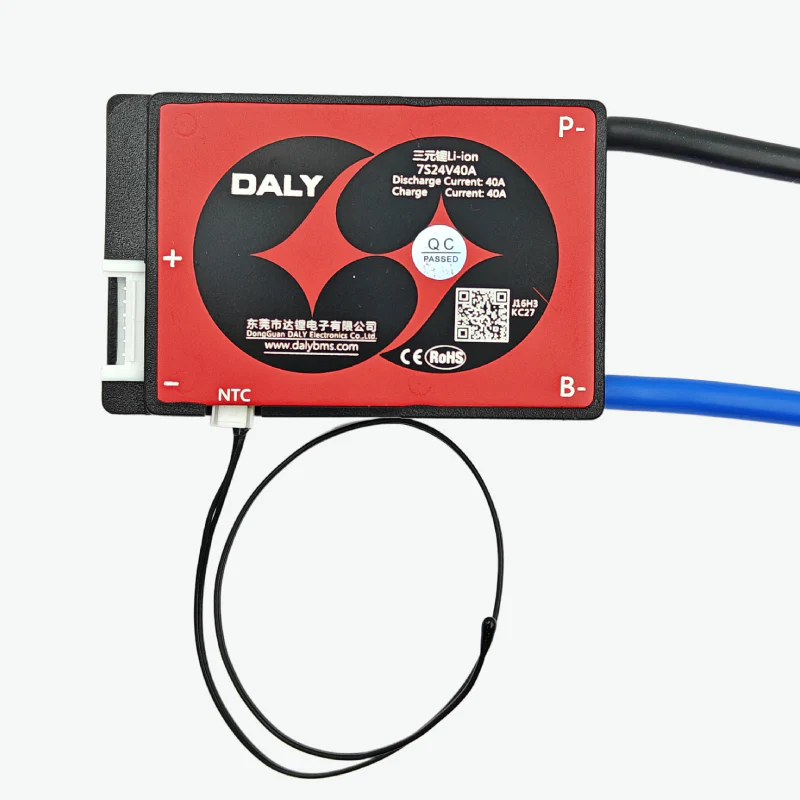

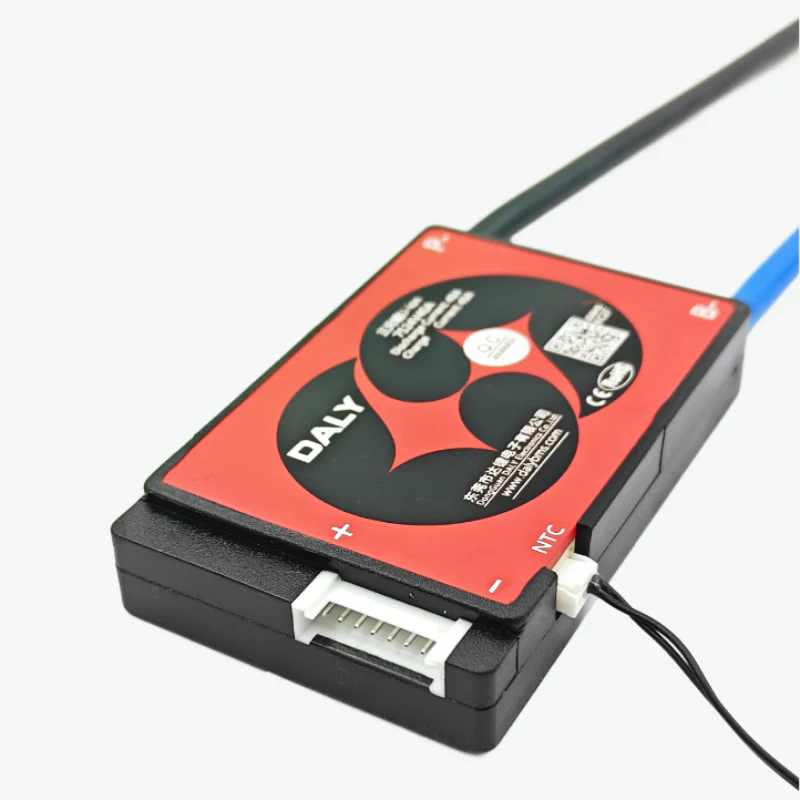

DALY 7S 24V 40A Waterproof BMS for Li-ion NMC Cell
Li-ion 7S 24V 40A Lithium Battery Protection Board with balance PCM BMS
FeaturesĀ :
- Strong load ability, constant discharge current 10A~250A ,Ā use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
- IC itself has power balancing function. The circuit is simple and reliable.
- Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable. long time short circuit of the load won't affect the PCB and the battery. Temperature protection during charging and discharging.
- Extreme low power consumption. the consumption of the whole device is less than 50uA.
- PCB use high anti-corrosion, high water resistance, high impedance ESD conformal coating.
Specification :
| Balance Current(mA) |
40Ā±5 |
| Balance Detect Voltage(V) |
3.8 |
| Cable Size (AWG) |
12 |
| Charge Current(A) |
20 |
| Charge Voltage(V) |
29.4 |
| Height (mm) |
9 |
| Length (mm) |
82 |
| Model |
7S 24V 40A |
| Over Discharge Detect(V) |
2.7Ā±0.1 |
| Over Discharge Release(V) |
Offload |
| Overcharge Detect Voltage(V) |
4.25Ā±0.05 |
| Overcharge Release Voltage(V) |
4.15Ā±0.05 |
| Width (mm) |
60 |
| Working Temperature Range (Ā°C) |
-20 to 70 |
Explore wide range of DALY Smart BMS >
Package Includes :
1 x 24V 7S 40A BMS Daly Waterproof BMS
